6" 2005-2015 Toyota Tacoma 4WD & 2WD PreRunner Lift Kit by Zone

This Zone OffRoad T3N lift kit gives Tacoma owners a complete and affordable system to clear up to 35 inch tires. The system is built off stout 1/4 inch thick front and rear crossmembers that incorporate all of the front differential mounting points to utilize the factory mounting brackets.

This setup maintains the factory rubber differential mounts for an easier installation. After being relocated, the differential is then completely protected by a full-width belly pan. The new crossmembers also relocate the lower control arms to match perfectly with the new extended-length ductile iron steering knuckles. The knuckles dwarf the factory components, adding strength and durability to the entire system. The factory geometry and traction control settings are considered and incorporated into the new knuckles. This provides precise and compliant handling characteristics for stock-like feel and function.

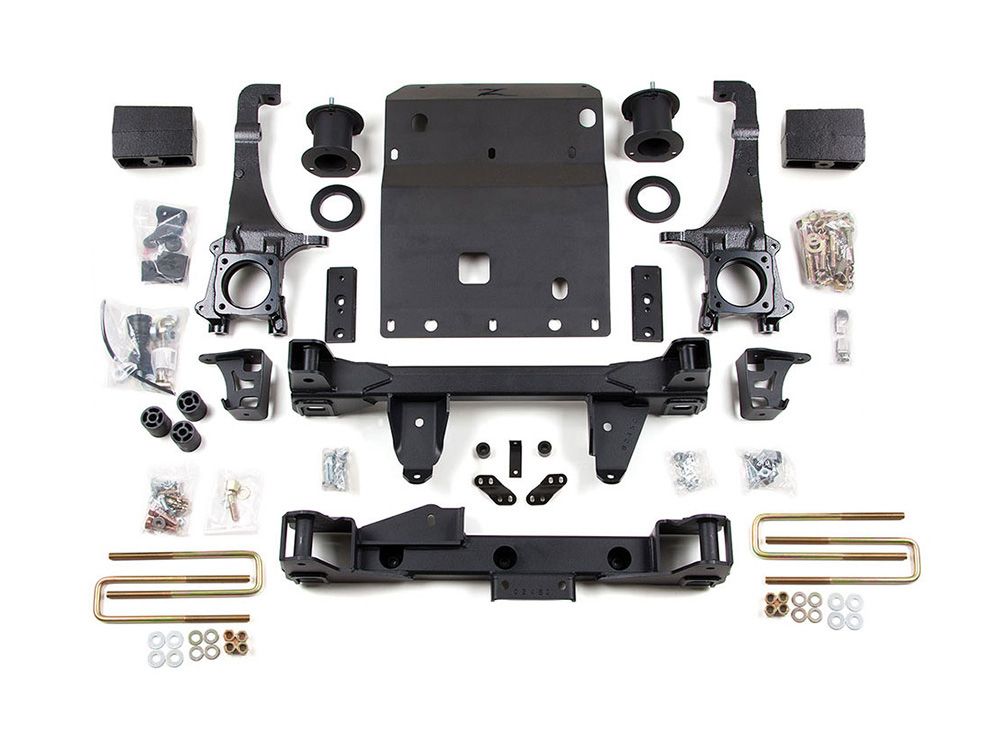

This complete system includes all of the necessary details like bump stop extensions, sway bar relocation, strut extensions, and brake line relocation brackets. A 4inch block kit is used in the back to give the lift needed to match the front. Detailed instructions are included, including the trimming steps required for 35inch tire clearance.

Top Features and Benefits

• 6 inch front lift / 4 inch rear lift
• Heavy Duty 1/4 inch boxed front and rear crossmembers
• Full width belly pan for differential protection and strong subframe
• Solid extended ductile iron steering knuckles
• Rear lift blocks and u-bolts to lift and level the stance
• Strut spacers to maintain factory struts and OE ride
• Black powdercoat finish
• Made in the USA
• Limited Lifetime Warranty

Recommended Tires and Wheel Sizes

• Tires: 35 x 12.5, Wheels: 18 x 9, Back spacing: 4.5"
• Tires: 35 x 12.5, Wheels: 20 x 9, Back spacing: 4.5"
• Tires: 35 x 12.5, Wheels: 22 x 9, Back spacing: 4.5"
