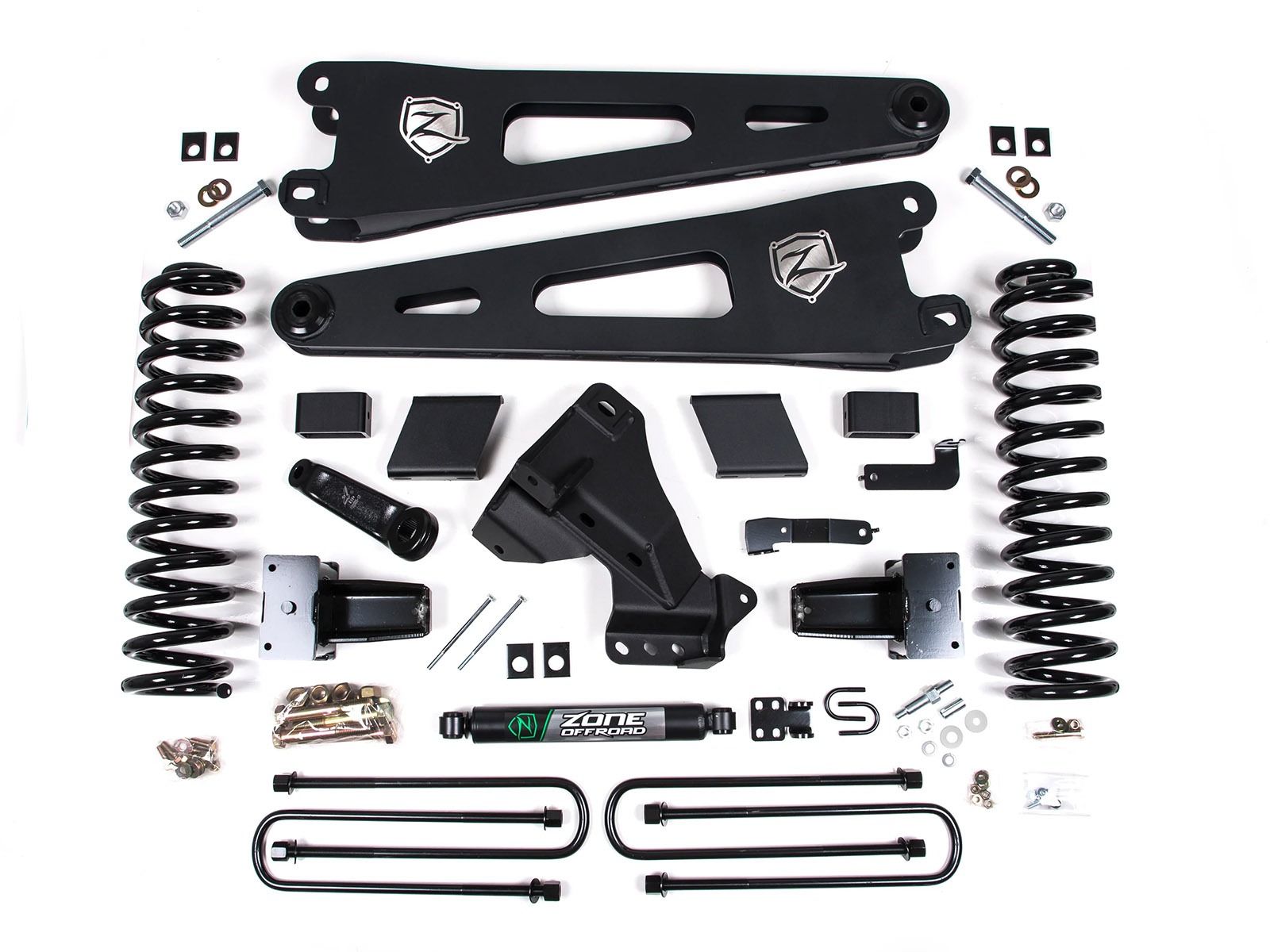

4" 2020-2022 Ford F250/F350 4wd Radius Arm Lift Kit by Zone

This Zone Off-Road F60 / F61 4 inch Lift Kit for the Ford F250/F350 4wd models will give your vehicle a great 4" lift with the ability to fit up to 37 inch tires. Radius Arms provide optimal strength, ground clearance and looks while correcting front end caster. This design levels and lifts the stance with room to fit up to 37" tires. Full length coil springs pair perfectly with either Fox 2.0 Adventure series shocks or Zones standard shocks. The front axle is repositioned using a pair of heavy duty radius arms that bolt in place of the factory stamped steel arms. Made out of 1/4" steel the arms are boxed and fully welded providing 2.5" greaseable bushings to isolate road vibration. Steering correction is dealt with by forged drop pitman arms, improving the operating angle while a massive track bar drop bracket is used to recenter the front end, keeping steering link angles optimal for predictable handling. Front sway bar relocation brackets, brake line drop brackets, bump stop extensions and a single steering stabilizer is also included in this kit. Last but not least chose between Fox 2.0 and Zone shocks in the rear end, each providing exceptional ride quality.

Features and Benefits:

• 4 inch front lift / 3 inch rear lift
• Heavy duty replacement radius arm provide better ground and tires clearance while correcting caster angles
• High strength progressive front coil springs provide great ride quality on any terrain
• Front HD track bar relocation bracket correctly repositions the front axle
• Maintains factory ride quality and characteristics due to correcting geometry
• Bolt-on installation, able to be returned to stock height
• Allows for clearance of larger 37" tires
• No cutting or welding required
• Choose between Zone Nitro Shocks or Fox Adventure Series Shocks
• Includes factory protection program
• Engineered to one of the highest degrees
• Limited Lifetime Warranty
• 5 year / 100,000 Mile Drivetrain Warranty
• Install Time: 4-6 Hours

Limited Lifetime Warranty - Zone Offroad Products are backed by a limited lifetime warranty.  Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser.

Drivetrain Protection - Zone Offroad Products offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) gives you piece of mind with your purchase.  Click here for more info
