6" 2017-2019 Ford F250/F350 4WD (w/diesel engine) Radius Arm Lift Kit by Zone

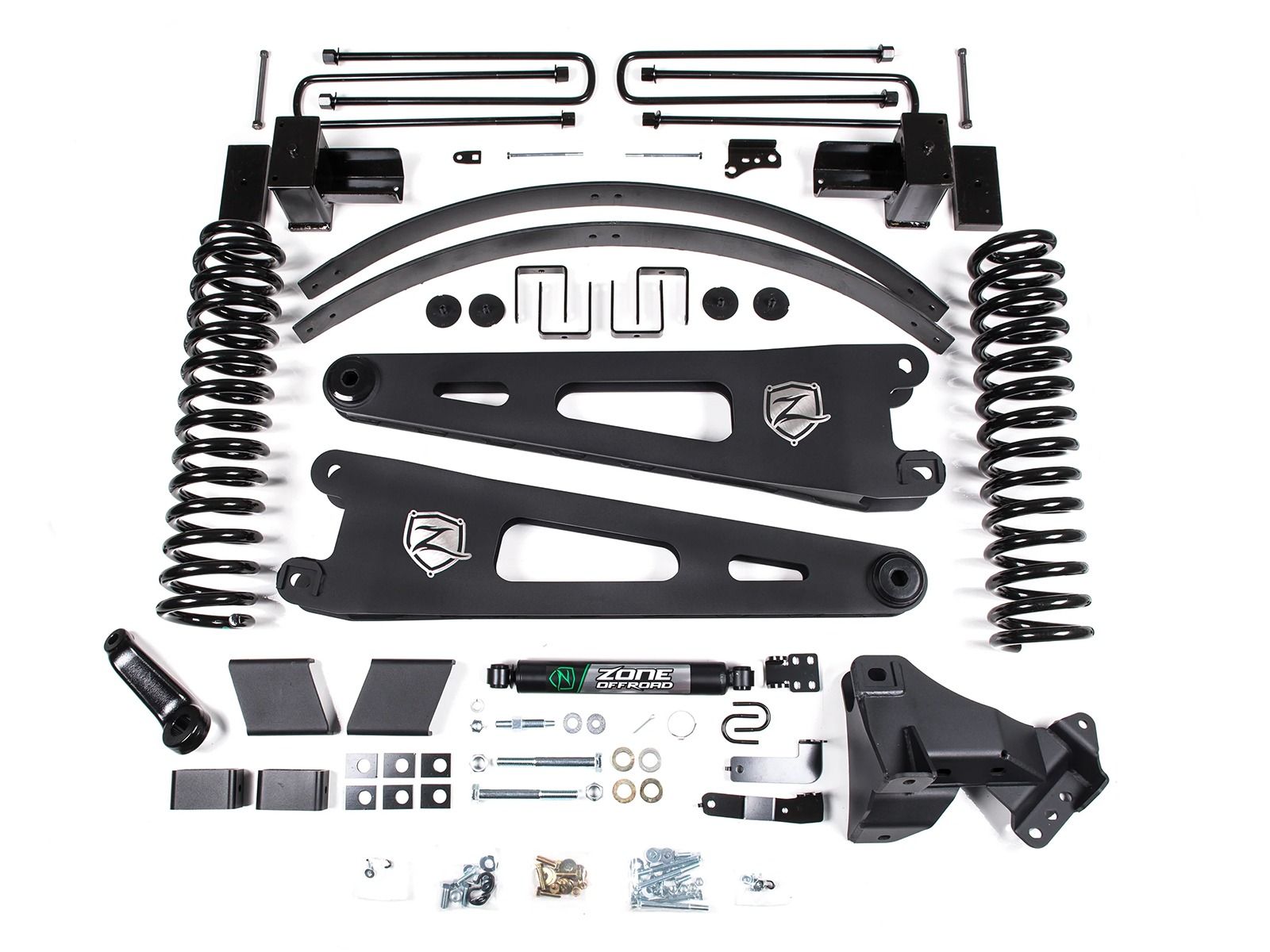

The Zone Off-road F51 / F52 6 inch lift kit for the Ford F250 / F350 trucks is an amazing suspension upgrade that allows from use of massive 38 inch diameter tires. Transforming your truck into an awesome looking off-road machine! Featuring a pair of heavy duty replacement radius arms that bolt in place of the factory stamped steel arms to properly correct caster and maximize ground clearance. These arms are built from high strength 1/4" steel, boxed and fully welded with large 2.5" greaseable bushings to isolate road vibrations. A forged drop pitman arm corrects steering angles and a massive 1/4" steel fabricated track bar drop bracket is used to recenter the front end. Also included for the front of this 6" lift kit are sway bar relocation brackets to correct sway bar operating angle, brake line drop brackets to reposition the factory lines, bump stop extensions to control suspension compression and new steering stabilizer mounts to improve operating angle for more effective use of the supplied larger nitro steering stabilizer cylinder.

Top Features and Benefits

• Allows use of 38 inch diameter tires
• Full Height Front Coil Springs
• Heavy Duty Replacement Radius Arms
• Track Bar Relocation Bracket
• Drop Pitman Arm to correct steering angles
• Sway Bar Drop Brackets
• Average install time: 6 to 8 hours
• Made in the USA
• Limited Lifetime Warranty
