5.5" 2014-2018 Dodge Ram 2500 (w/gas engine) 4WD Lift Kit by Zone

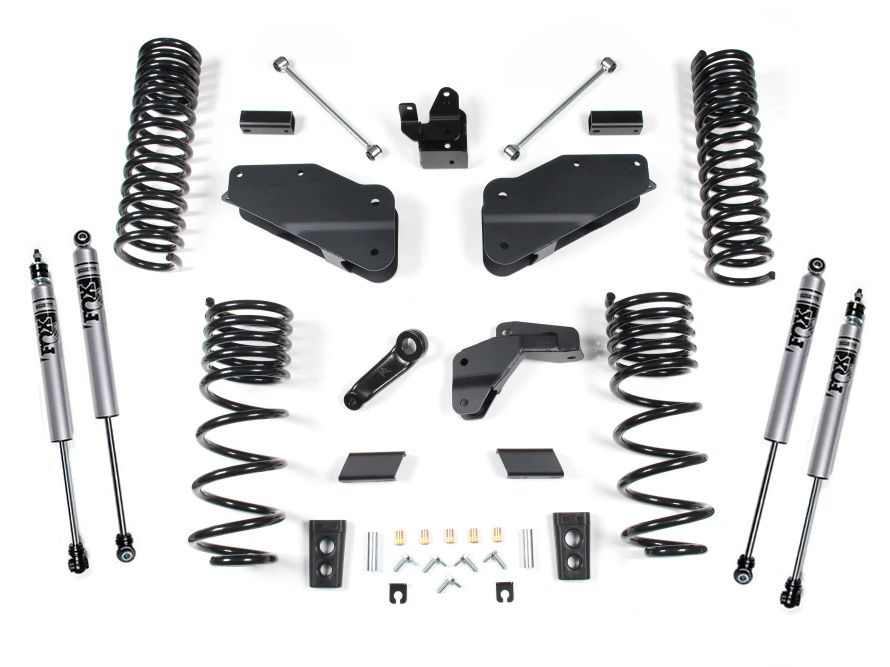

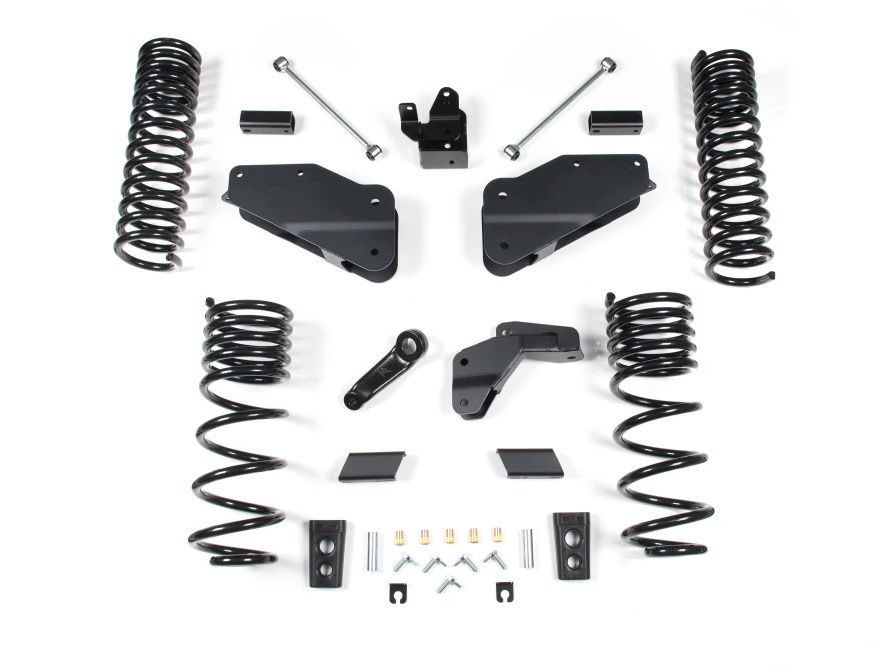

This Zone Offroad D68 5.5 inch lift kit for the Dodge Ram 2500 is an excellent suspension upgrade to allow for use of up to 37 inch tires, giving your truck a great new look. This kit utilizes heavy duty drop brackets to relocate the factory Ram radius arms. This relocation corrects the suspension geometry to compensate for the 5.5 inch of lift provided by the progressive rate coil springs. Extended bump stops, dropped pitman arm, track bar relocation and brake line relocation round out the front components. In the rear, the new 4 link suspension designed is modified for 4.5 inch of lift via a new progressive rate coil springs. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Top Features and Benefits

• 5.5 inch front lift / 4.5 inch rear lift
• Radius arm relocation brackets correct suspension geometry
• Progressive rate front and rear coil springs
• Track bar relocation bracket keep front axle centered
• Forged drop pitman keeps proper steering angles
• Extended bump stops to keep suspension from over extending
• Extended sway bar end links keep sway bar from binding
• Made in the USA
• Limited Lifetime Warranty

Recommended Tires and Wheels

• 35 x 12.5 Tires, 17 x 9 Wheels, 4.5 inch back spacing
• 37 x 12.5 Tires, 17 x 9 Wheels, 5.75 inch back spacing
• 37 x 12.5 Tires, 20 x 9 Wheels, 5.75 inch back spacing
