4.5" 2014-2018 Dodge Ram 2500 4wd (w/Diesel Engine) Radius Arm Lift Kit by Zone

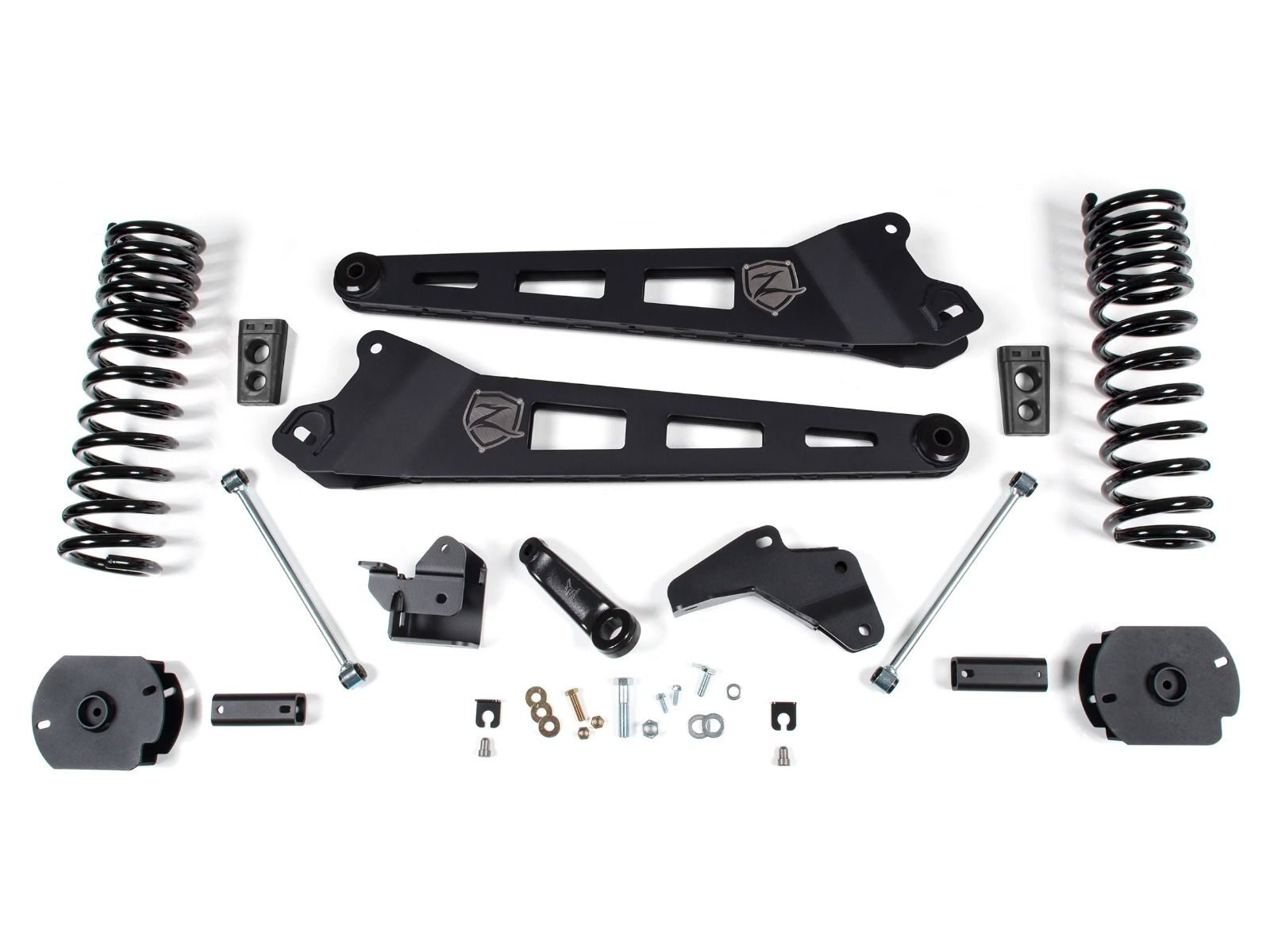

This Zone Offroad D55 4.5 inch lift kit for the Dodge Ram 2500 4wd is an awesome way to to fit up to 37 inch diameter tires while giving your truck a great new look. Featured in this kit are heavy duty radius arms designed to bolt in the factory location while adjusting the suspension geometry for 4.5 inches of lift. The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Progressive rate front coil springs lift the front end while a forged drop pitman arm and track bar relocation bracket keep proper front end and steering angles.

In the rear, the new 4 link suspension designed is modified for 2.5 inch of lift via a new heavy duty coil spring spacer setup. The coil spring spacers located and bolt directly to the factory axle mount. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Top Features and Benefits

• 4.5 inch front lift / 2.5 inch rear lift
• Heavy duty radius arm correct caster while mounting into stock location
• Progressive rate front coil springs
• Track bar relocation bracket keep front axle centered
• Forged drop pitman keeps proper steering angles
• Extended bump stops to keep suspension from over extending
• Coil springs spacers lift the rear while keeping a smooth ride
• Extended sway bar end links keep sway bar from binding
• Made in the USA
• Limited Lifetime Warranty

Recommended Tires and Wheels

• 35 x 12.5 Tires, 17 x 9 Wheels, 4.5 inch back spacing
• 37 x 12.5 Tires, 18 x 9 Wheels, 5.75 inch back spacing
• 37 x 12.5 Tires, 20 x 9 Wheels, 5.75 inch back spacing
