F150 2015-2022 Ford Load Leveling Air Bag Helper Springs by ReadyAir

Brand: ReadyLift | SKU: 88-21150
$499.95

SAVE 15% OFF W/CODE: Use code READY15 for 15% off ReadyLift Products, ends April 30th.


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

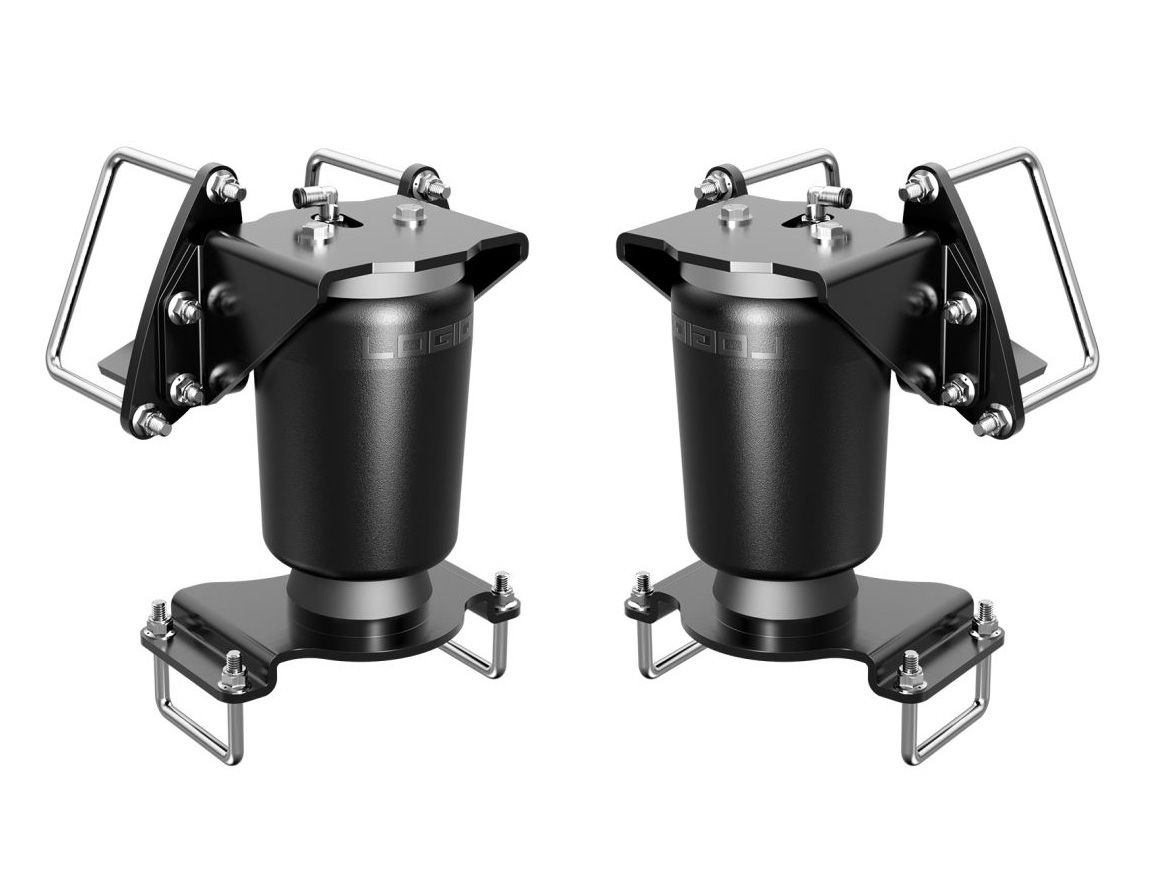

This ReadyAir (by ReadyLift) 88-21150 Load Leveling Air Bag Helper Spring Kit for the Ford F150 trucks is a premuim suspension upgrade that will improve load support and handling while towing or hauling a heavy load. Featured in the kit are LOGIQ air springs that use a unique sleeve bag design which is far superior to the traditional double-bellow designs. Giving increased suspension travel, stability and load support while having a natural frequency of 1.6Hz (double bellow bags have a frequency of over 2.5Hz) which translates into great ride quality.

The innovations do not stop there. These are the only suspension air bags that come pre-assembled and ready to install. Anyone that has installed air bag helper springs will appreciated this.

Features and Benefits:

  • Keeps rear end from sagging while towing or hauling a heavy load
  • LOGIQ Sleeve Style Air Bags are rated at 1.6Hz natural frequency = smoother ride than traditional double bellow air springs
  • 100% Pre-Assembled for simple installation
  • No-Drilling Required, uses clamp around design
  • Improves ride quality, stability, handing and load support
  • Increases level load capacity
  • Heavy duty custom fit brackets
  • Adjustable air pressure from 10 to 150 PSI
  • Can be paired with AIRIQ air compressor systems that allow for control of air pressure from phone app
  • Adjust ride firmness (or softness) manually or with optional air compressor system
  • Fits with most 5th Wheel Hitches
  • Limited Lifetime Warranty

Included Components

  • Driver Side Air Spring Assembly (air springs and brackets)
  • Passenger Side Air Spring Assembly (air springs and brackets)
  • Hardware Kit
  • Manual Inflation Kit
View ReadyLift 88-21150 Instruction Manual
Important Notes
  • Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.
  • Not compatible with most aftermarket leaf springs
  • Not compatible with 5th wheel hitches with the frame clamping system
  • Not compatible with Ford BlueCruise
  • Height Sensor Relocation Kit 88-21150-1 required for trucks equipped with CCD height sensors. (see options)

    • Available Options

    Air Management Systems
    1 of 3 options
    AirIQ SD1 Air Management System (Single Path, Standard Duty Compressor) by ReadyAir

    This ReadyAir (by ReadyLift) AirIQ SD2 50-41200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a standard duty air compressor rated at 25% duty cycle with 2.03 CFM @ 0 psi. Perfect for everyday use. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    Read More

    This ReadyAir (by ReadyLift) AirIQ SD2 50-41200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a standard duty air compressor rated at 25% duty cycle with 2.03 CFM @ 0 psi. Perfect for everyday use. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    $699.95
    2 of 3 options
    AirIQ SD2 Air Management System (Dual Path, Standard Duty Compressor) by ReadyAir

    This ReadyAir (by ReadyLift) AirIQ SD2 50-41200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a standard duty air compressor rated at 25% duty cycle with 2.03 CFM @ 0 psi. Perfect for everyday use. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    Read More

    This ReadyAir (by ReadyLift) AirIQ SD2 50-41200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a standard duty air compressor rated at 25% duty cycle with 2.03 CFM @ 0 psi. Perfect for everyday use. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    $799.95
    3 of 3 options
    AirIQ HD2 Air Management System (Dual Path, Heavy Duty Compressor) by ReadyAir

    This ReadyAir (by ReadyLift) AirIQ HD2 50-42200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a heavy duty air compressor rated at 33% duty cycle with 2.62 CFM @ 0 psi. Perfect for heavy usage. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    Read More

    This ReadyAir (by ReadyLift) AirIQ HD2 50-42200 Air Management System is a premium kit that pairs with air bag helper springs to allow you to easily control the air pressure. This gives you the ability adjust the softness or firmness of your ride quality to match current driving conditions (hauling or towing a heavy load = higher pressure, unloaded highway driving = lower pressurer). The AirIQ system is Bluetooth controlled from a phone app (iOS and Android devices) that allows you to quickly make adjustments from inside or outside your vehicle.

    This kit featues a heavy duty air compressor rated at 33% duty cycle with 2.62 CFM @ 0 psi. Perfect for heavy usage. The compressor has a dual air path (2 Channel) to allow for pressure control of both the driver and passenger for side to side leveling. Installation is made easy with the inclusion of mounting brackets with the compressor and control module pre-assembled on the mount brackets.

    $899.95
    Relocation Kit for CCD Models
    F150 2015-2022 Ford (w/CCD) Height Sensor Relocation Kit for use with Air Bag Helper Springs by ReadyAir

    This ReadyAir (by ReadyLift) 88-21150-1 Heigh Sensor Relocation Kit for Ford F150 modesl equipped with factor CCD (continuously controlled damping) will allow for use of ReadyAir Load Leveling Air Bag Helper Springs on these models.

    Features and Benefits:

    • Relocates the heigh senor on models equipped with CCD
    • Allows for use of ReadyAir Air Bag Helper Springs on models Ford F150 with CCD
    • Heavy duty steel brackets
    • Powder coated
    Read More

    This ReadyAir (by ReadyLift) 88-21150-1 Heigh Sensor Relocation Kit for Ford F150 modesl equipped with factor CCD (continuously controlled damping) will allow for use of ReadyAir Load Leveling Air Bag Helper Springs on these models.

    Features and Benefits:

    • Relocates the heigh senor on models equipped with CCD
    • Allows for use of ReadyAir Air Bag Helper Springs on models Ford F150 with CCD
    • Heavy duty steel brackets
    • Powder coated
    $79.95
    Vehicle Fitment
    MakeFord
    ModelF150
    Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
    2WD/4WD2WD, 4WD
    Tech Specs
    ManufacturerReadyLift
    Manufacturer Part Number88-21150
    Item Numberrlp_88-21150
    MPN(UPC)194933169726
    Product LineAir Bag Helper Springs
    Front/RearRear
