2" Tacoma 2005-2023 Toyota 4WD Lift Kit (w/BP51 Coilovers & Shocks) by Old Man Emu

The Old Man Emu 1204K / 1205K 2-inch suspension lift system for the 2005 to 2023 Toyota Tacoma is a premium upgrade to enhance ride quality, control, load-carrying capacity, and ride height. When building an off-road vehicle, considering the added weight of heavy components, which can cause suspension sag over time, is essential. Old Man Emu suspension kits are engineered to prevent this, ensuring a smooth, comfortable ride by balancing components to handle various weight loads.

This kit features Old Man Emu BP-51 bypass coilovers and shocks, utilizing the latest off-road technology. These user-adjustable internal bypass shocks offer ten compression and rebound adjustment levels, delivering exceptional comfort and control on and off the road. The BP51 shocks and coilovers use a large 51 mm, 6061 grade aluminum body that dissipates heat 15 times faster than steel body shocks.

In the rear, Old Man Emu Darkar leaf springs provide 2 inches of lift. These premium springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature-packed, Emu Dakar leaf springs will deliver vastly improved ride, handling, and load-carrying capability. You can have a standard load rating or a 660 lbs constant load rating (see options).

Features and Benefits:

• 2-inch front lift, 2-inch rear lift
• Provides a 2-inch front lift, supporting weights from 0-330 lbs.
• Old Man Emu BP-51 shocks & coilovers feature a 51 mm bore 6061-grade aluminum body.
• Dakar premium rear leaf springs lift the rear 2 inches with a standard load rating or 660 lbs constant load
• BP-51 bypass shocks and coilovers feature ten levels of user-adjustable compression and rebound settings.
• Enhances ride quality, control, load-carrying capacity, and ride height.
• Remote reservoirs greatly increase oil capacity for improved dampening
• Balancing suspension components for various weight loads ensures a smooth, comfortable ride
• Delivers superior comfort and control both on and off-road.

Dakar Rear Leaf Spring Features

• Load: Designed for vehicles with no constant or 660 lbs constant load.
• Draw tapered and diamond-cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This increases ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt clamps and liners: The leaf clamps are bolted to allow the installation of anti-squeak nylon liners.
• Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set', reducing the risk of sagging. Load testing ensures the spring meets the required specifications.
• Military wrap: Designed to provide added safety.
• Anti-friction pads: Grazeable nylon interleaf liners reduce friction at the leaf tips, where the load is the greatest.
• Flat axle seat area: Allows a positive, safe axle mount, reducing spring stress and increasing spring life.
• Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double a spring's life.
• Two-stage leaf pack: This feature is featured on most rear springs for optimum comfort. When unladen, the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

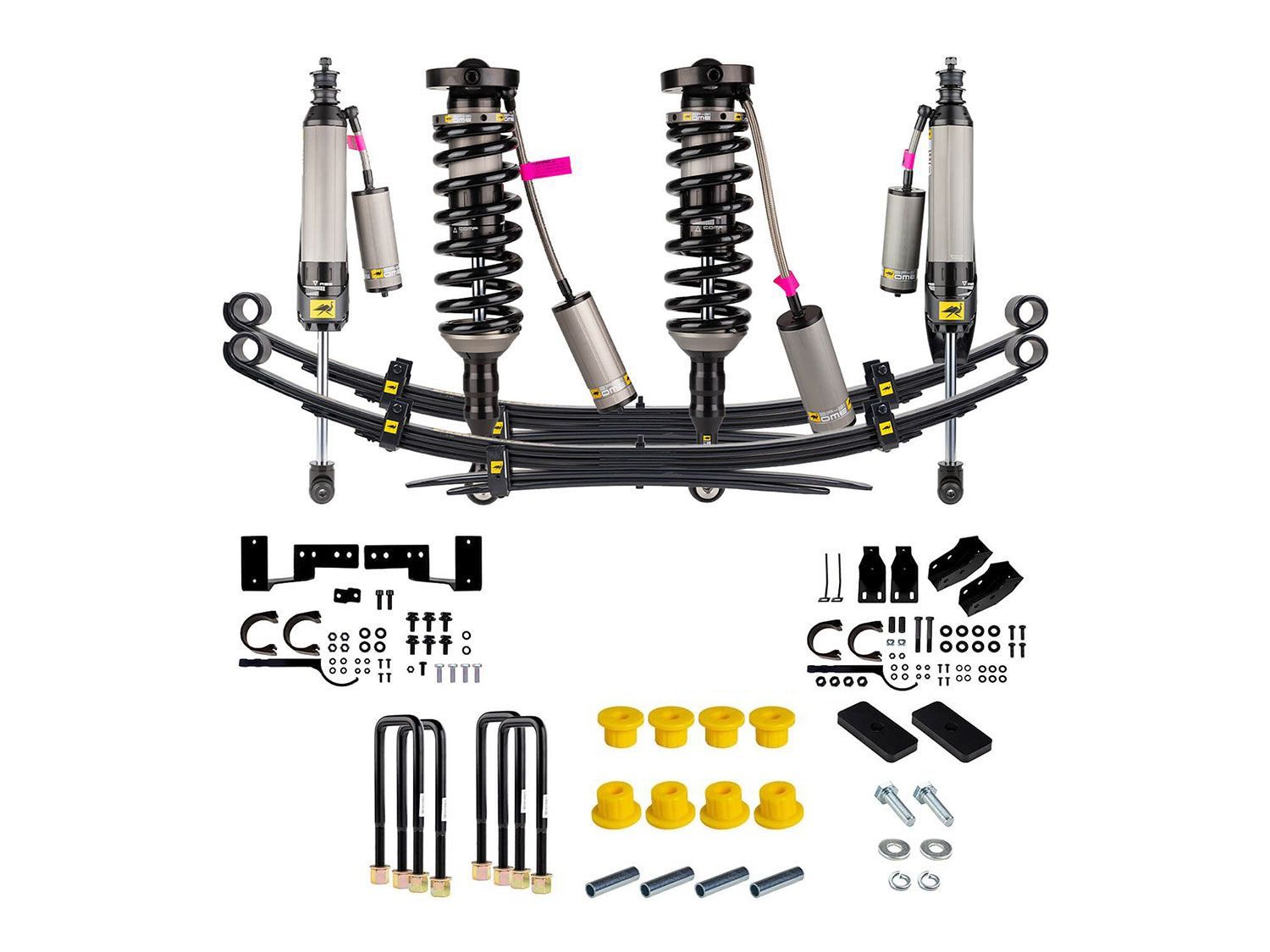

1204K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Leaf Spring Bushings - OMESB108
• (2) Rear Leaf Springs - EL111R
• (1) BP-51 Rear Shock Fit Kit - VM80010017
• (1) BP-51 Coilover (passenger side) - BP5190006R
• (1) BP-51 Coilover (driver side) - BP5190006L
• (1) BP-51 Shock (passenger side) - BP5160011R
• (1) BP-51 Shock (driver side) - BP5160011L
• (1) BP-51 Front Fit Kit - VM80010016
• (2) Greasable Pin Kit - OMEGP9

1205K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Leaf Spring Bushings - OMESB108
• (2) Rear Leaf Springs - EL112R
• (1) BP-51 Rear Shock Fit Kit - VM80010017
• (1) BP-51 Coilover (passenger side) - BP5190006R
• (1) BP-51 Coilover (driver side) - BP5190006L
• (1) BP-51 Shock (passenger side) - BP5160011R
• (1) BP-51 Shock (driver side) - BP5160011L
• (1) BP-51 Front Fit Kit - VM80010016
• (2) Greasable Pin Kit - OMEGP9
