2" Tacoma 2005-2015 Toyota 4WD Lift Kit (w/MT64 Shocks) by Old Man Emu

Old Man Emu's 1104K / 1105K MT64 2-inch lift systems for the 2005 to 2015 Toyota Tacoma are designed to improve ride quality, control, load-carrying capacity, and ride height. When building an off-road vehicle, it's essential to consider the weight of added components, as heavy parts can gradually compress the suspension and lead to sagging. Old Man Emu suspension kits are designed to prevent this, providing a smooth, comfortable ride by balancing suspension components for different weight loads.

Old Man Emu ensures you can find the perfect suspension kit for your needs and driving conditions. This kit features Old Man Emu MT64 shocks designed, engineered, and manufactured by ARB’s specialized suspension engineers. The MT64 shocks and struts use a massive 2.8-inch aerospace aluminum body that dissipates heat 15 times faster than steel body shocks. Front struts have 6-positions for the spring seat to allow for various setups that could affect ride height. Its huge 64mm internal bore allows precise tuning, significantly enhancing control and comfort. The front struts are paired with new front coil springs, providing 2-inches of front lift for additional fender/tire clearance.

In the rear, Old Man Emu Darkar leaf springs provide 2 inches of lift. These premium springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature-packed, Emu Dakar leaf springs will deliver vastly improved ride, handling, and load-carrying capability. You can have a standard load rating or a 660 lbs constant load rating (see options).

Features and Benefits:

• 2-inch front lift / 2-inch rear lift
• Provides a 2-inch lift in the front with a load capacity of 0 lbs to 330 lbs
• Features Old Man Emu MT64 Monotube Gas shocks with a massive 2.8-inch aluminum body (dissipates heat fifteen times faster than steel)
• Dakar premium rear leaf springs lift the rear 2 inches with a standard load rating or 660 lbs constant load
• Shocks 64mm internal bore allows precise tuning, enhancing vehicle control and comfort.
• 6-position adjustable spring seat catering to a range of different vehicle setups
• Coil Springs provides a smooth and comfortable ride by balancing suspension components for different weight loads and preventing suspension sag caused by heavy components.
• Front coil springs designed specifically for Old Man Emu Nitrocharger Plus or MT64 struts
• Specifically tuned for the Toyota Tacoma.

Dakar Rear Leaf Spring Features

• Load: Designed for vehicles with no constant or 660 lbs constant load.
• Draw tapered and diamond-cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This increases ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt clamps and liners: The leaf clamps are bolted to allow the installation of anti-squeak nylon liners.
• Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set', reducing the risk of sagging. Load testing ensures the spring meets the required specifications.
• Military wrap: Designed to provide added safety.
• Anti-friction pads: Grazeable nylon interleaf liners reduce friction at the leaf tips, where the load is the greatest.
• Flat axle seat area: Allows a positive, safe axle mount, reducing spring stress and increasing spring life.
• Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double a spring's life.
• Two-stage leaf pack: This feature is featured on most rear springs for optimum comfort. When unladen, the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

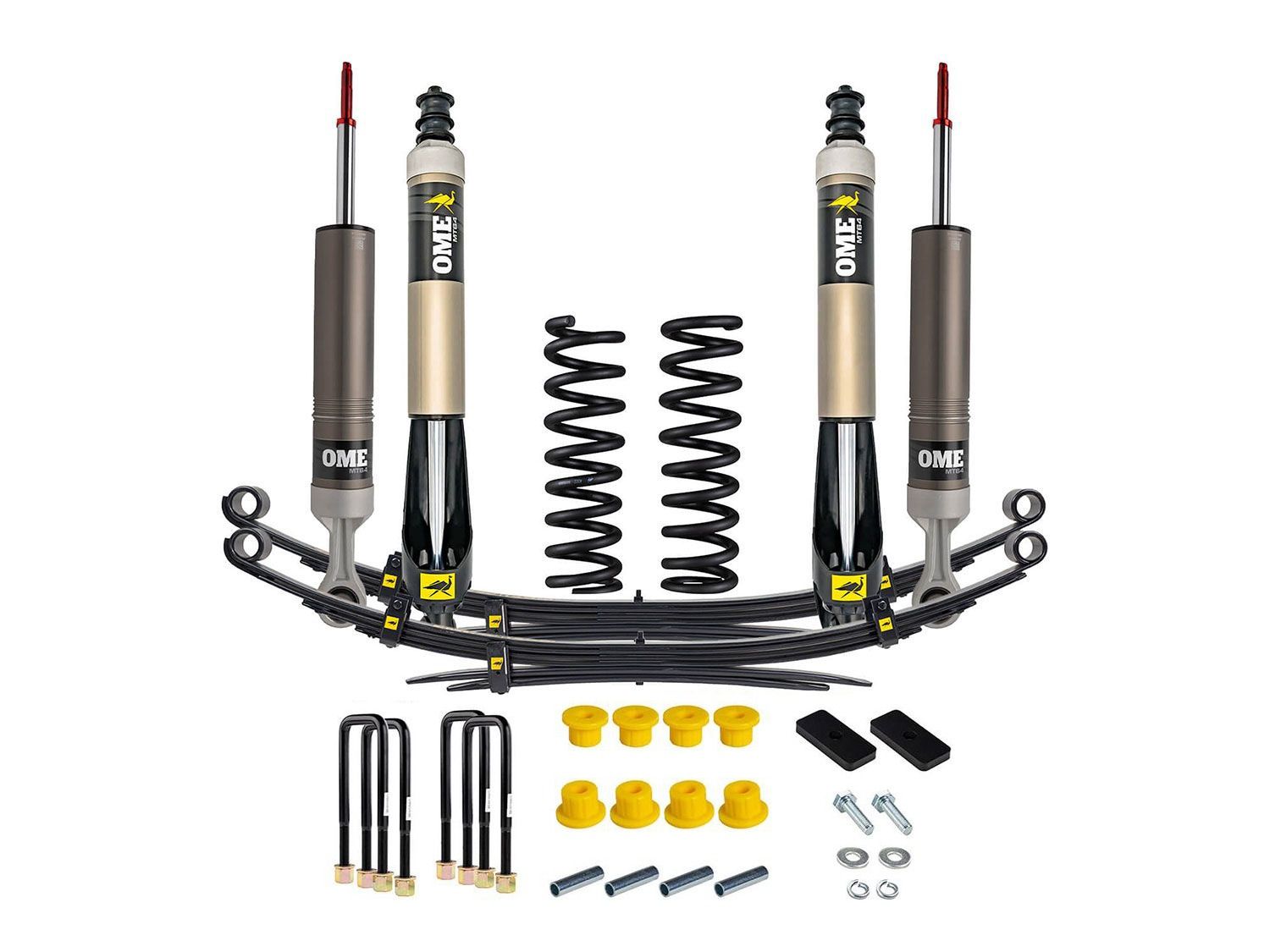

1104K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Rear Leaf Spring Bushing Kits - OMESB108
• (2) Rear Leaf Springs - EL111R
• (1) Rear MT64 Shocks - MT64601013R
• (1) Rear MT64 Shocks - MT64601013L
• (2) Front Coil Springs - 4002
• (2) Front MT64 Struts - MT64901007
• (2) Rear Greasable Pins - OMEGP9

1105K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Rear Leaf Spring Bushing Kits - OMESB108
• (2) Rear Leaf Springs - EL112R
• (1) Rear MT64 Shocks - MT64601013R
• (1) Rear MT64 Shocks - MT64601013L
• (2) Front Coil Springs - 4002
• (2) Front MT64 Struts - MT64901007
• (2) Rear Greasable Pins - OMEGP9
