6" 2017-2022 Ford F250/F350 Diesel 4wd Basic Lift Kit by Fabtech

Brand: Fabtech | SKU: K2217
From $1,458.16


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

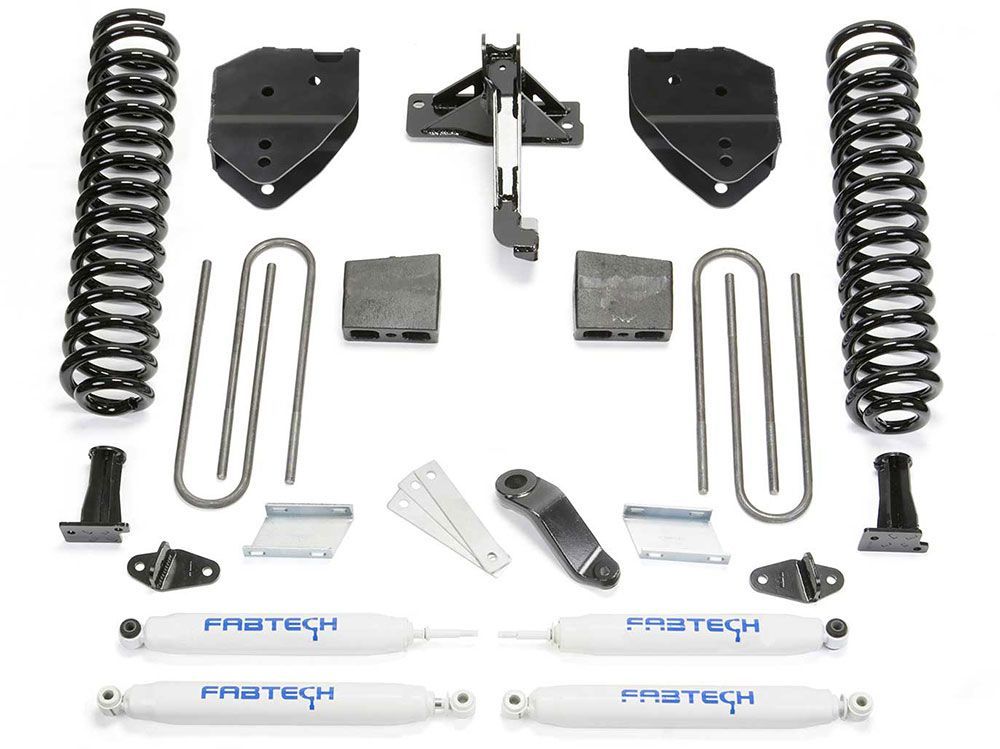

The Fabtech K2217 6 inch Basic lift kit for the Ford F250 / F350 trucks is a good suspension upgrade that will allow for larger diameter tires (37 inch). The kit comes with new front coil springs providing 6 inches of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket with a kicker brace that has been designed to center the axle under the vehicle and includes a Drop Pitman Arm. Rear lift is accomplished with lift blocks and extended length u-bolts.

Top Features

  • Fabtech Coil Springs lift front 6 inches
  • Heavy duty track bar bracket - centers front axle
  • Sway bar drop brackets - correct angle of factory sway bar
  • Pitman arm - corrects steering angles
  • Rear block and ubolt kit
  • Limited Lifetime Warranty

Recommended Tires and Wheels

  • 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/12.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming
View Fabtech K2217 Instruction Manual

Product Highlights

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.
Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.
Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important Notes- Non Dually Models Only.
- Will not fit gas motors.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020, 2019, 2018, 2017
2WD/4WD4WD
Tech Specs
ManufacturerFabtech
Manufacturer Part NumberK2217
Item Numberfab_k2217-k2217m-k2217dl
MPN(UPC)674866103030
Product LineLift Kits
Lift Height6 inch
SpecialCall for Price Match!
