1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 5

The ICON Vehicle Dynamics K53365 / K53365T Stage 5 Suspension System for the Toyota Land Cruiser 250 Series is engineered for drivers who demand uncompromising performance and capability. Designed to enhance wheel travel, damping ability, and overall ride quality, this suspension system delivers exceptional control and comfort on and off the road.

The 2.5 Series coilover shocks are at its core, tuned specifically for the Land Cruiser. Featuring remote reservoirs for enhanced cooling and ICON-engineered coil springs, these coilovers ensure superior performance across the full range of suspension travel. Adjustable from 1.25 to 3 inches of front lift, they allow for the installation of larger, more aggressive wheel and tire setups. The remote reservoirs increase oil volume and heat dissipation, preventing shock fade during hard use. Front differential drop brackets and optimized coilover lengths maximize suspension travel while preventing CV joint binding, while polyurethane differential mounting bushings reduce differential movement under load.

The system includes tubular or billet aluminum upper control arms designed to enhance front-end geometry and provide additional caster for improved handling. These arms feature the innovative ICON Delta Joint PRO, a serviceable and rebuildable component that eliminates bind while allowing full suspension travel during bumps and drops. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

In the rear, dual-rate coil springs perfectly balance comfort and performance. The softer initial rate provides a smooth on-road ride, while the firmer overload rate offers excellent resistance to bottoming out during off-road adventures. The system includes 2 inches of rear lift to maintain a level stance and ensure balanced performance. ICON’s 2.5 Aluminum Series rear shocks with remote reservoirs and integrated bump zones further elevate damping capabilities. Vehicle-specific valving provides a seamless balance between the front and rear suspension, offering stability and control in all driving conditions.

Top Features and Benefits

• Designed to enhance wheel travel, damping ability, and overall ride quality for superior control and comfort on and off the road.
• 2.5 Series Coilover shocks with remote reservoirs provide enhanced cooling and prevent shock fade during demanding use.
• ICON-engineered coil springs deliver exceptional performance across the full suspension travel range.
• Height-adjustable coilovers (1.25 to 3 inches) allow for larger, more aggressive wheel and tire setups.
• Front differential drop brackets and optimized coilover lengths maximize suspension travel and prevent CV joint binding.
• Polyurethane differential mounting bushings reduce movement under load for improved reliability.
• Tubular steel or billet aluminum upper control arms improve front-end geometry and add a caster for better handling.
• ICON Delta Joint PRO eliminates bind while allowing full suspension travel and is serviceable and rebuildable.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• Dual-rate rear coil springs combine a softer initial rate for on-road comfort with a firmer overload rate for off-road bottoming resistance.
• Provides 2 inches of rear lift for a level stance and balanced performance.
• 2.5 Aluminum Series rear shocks with remote reservoirs and integrated bump zones deliver precise damping and balanced performance between the front and rear suspension.
• Transforms the 2024 Toyota Land Cruiser 250 Series into a high-performance vehicle ready for both adventure and everyday driving.

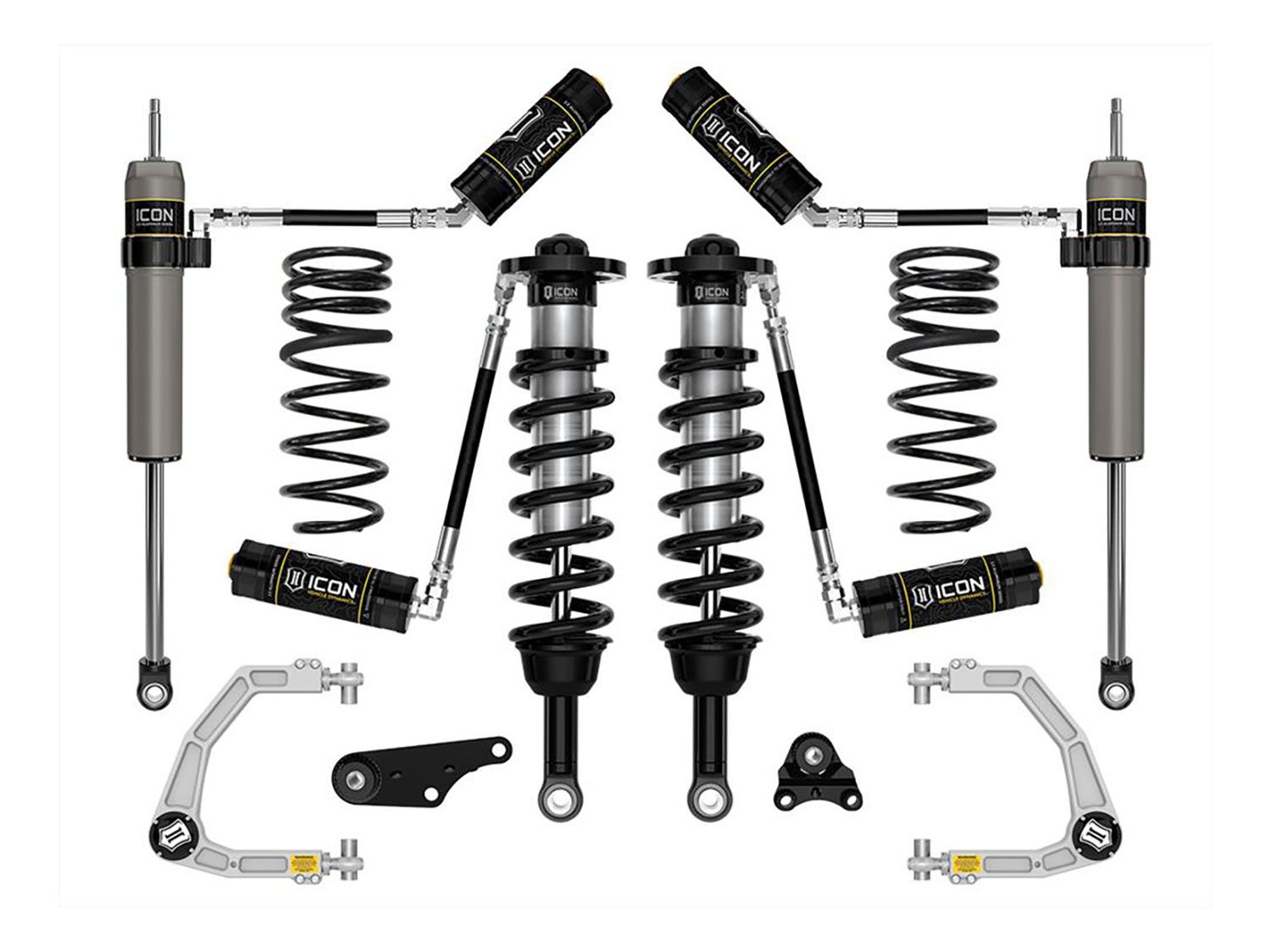

Parts Included

• 58791 (QTY: 1) | FRONT 2.5 VS RR COILOVER KIT
• 58452DJ OR 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870P (QTY: 1) | REAR 2.5 VS RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
