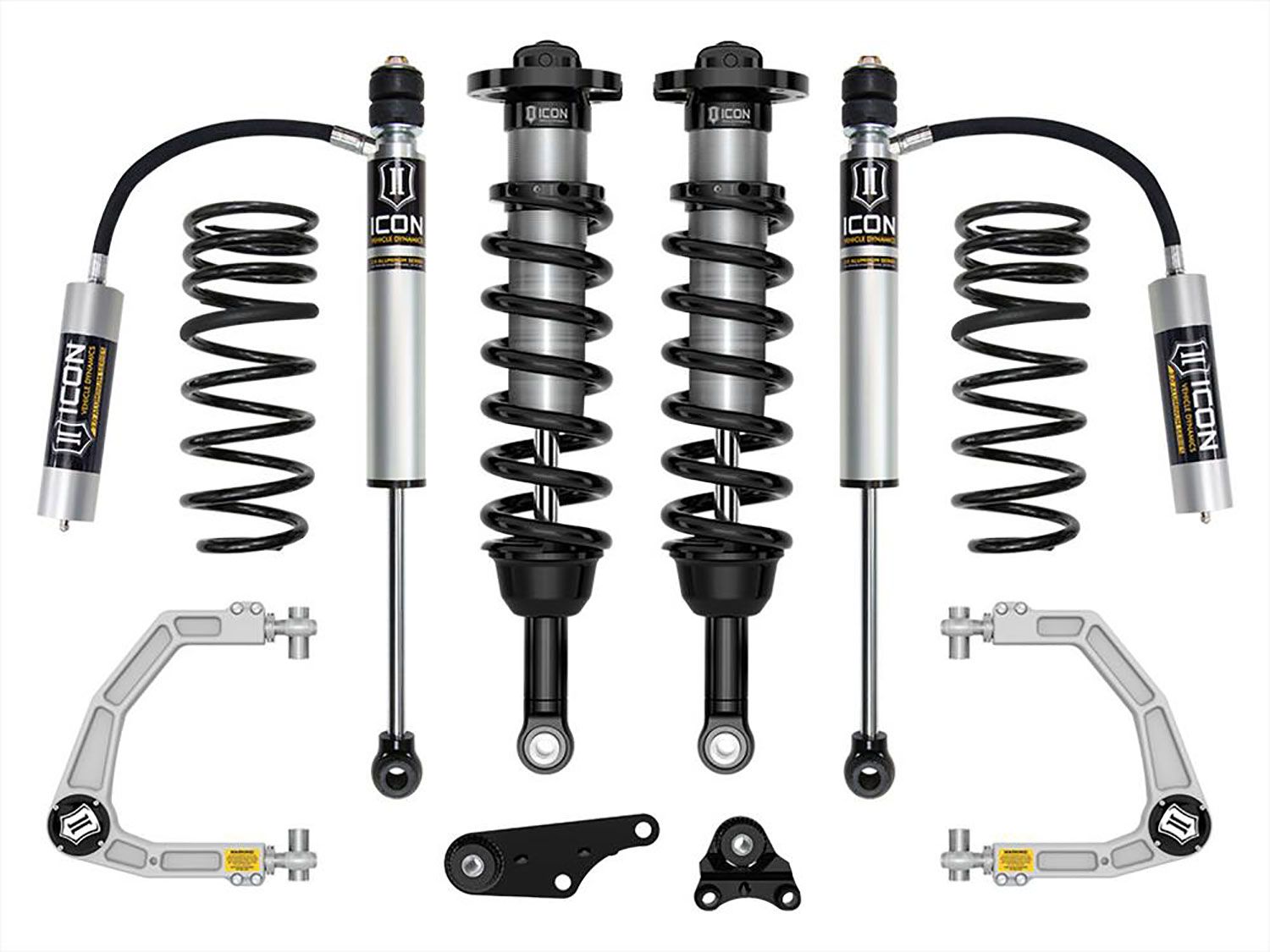

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 3

The 2024 Toyota Tacoma suspension systems from ICON Vehicle Dynamics are engineered for maximum performance, catering to enthusiasts who demand the best. Focusing on increasing wheel travel and damping ability, ICON's K53293S Stage 3 system delivers exceptional vehicle control and ride quality, whether cruising the streets or tackling off-road terrain.

This system includes vehicle-specific tuned 2.5 Series coil-over shocks with internal reservoirs, providing superior cooling properties. Paired with ICON-engineered coil springs, these components offer a heightened "feel" throughout the range of travel. Adjustable from 1.25 to 3 inches of front lift height over stock, these coil-overs allow for the use of larger wheel and tire combinations, enhancing both aesthetics and performance. ICON's front differential drop brackets and specially designed coil-over lengths maximize front suspension travel while preventing CV binding. Polyurethane differential mounting bushings replace soft OE bushings, reducing differential movement under load for enhanced stability.

The billet aluminum upper control arm kit improves overall performance with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance.The all-new ICON Delta Joint PRO replaces OE ball joints, facilitating full bump and droop travel while eliminating binding.

Rear triple-rate coils provide softer droop and ride rates with a firmer overload rate, offering on-road comfort, excellent bottoming resistance, and superior off-road performance.

ICON 2.0 Aluminum Series remote reservoir rear shocks ensure improved cooling ability and balanced performance tailored to your Tacoma's needs.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Triple-rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
