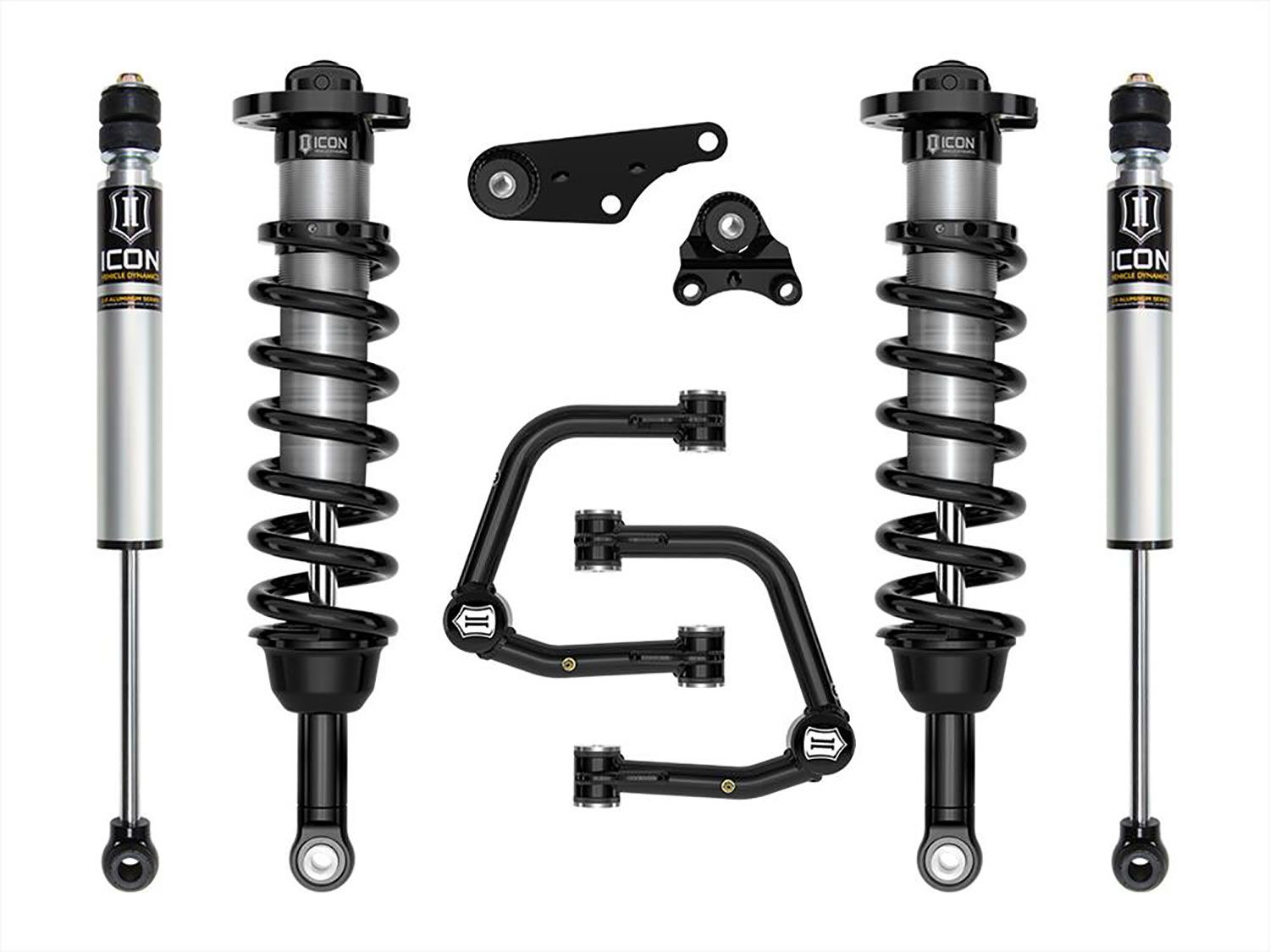

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 2

ICON Vehicle Dynamics presents K53292T for the 2024 Toyota Tacoma suspension system designed for the driver seeking peak performance. With a primary focus on increasing wheel travel and damping ability, the Stage 2 system delivers unparalleled vehicle control and ride quality, whether tackling on or off-road terrain. Featuring vehicle-specific tuned 2.5 Series coil-over shocks with internal reservoirs, this system ensures exceptional cooling properties and superior vehicle "feel" throughout the range of travel. Adjustable from 1.25-3” of front lift height over stock, these coil-overs easily accommodate larger, more aggressive wheel and tire combinations.

Integrating front differential drop brackets and specifically designed coil-over lengths maximizes available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings also replace OE bushings, effectively limiting differential movement under load. The ICON tubular upper control arm kit enhances overall performance by correcting front-end geometry, increasing on-vehicle camber and caster adjustment, and improving suspension component clearance. The introduction of the all-new, serviceable, and rebuildable ICON Delta Joint PRO replaces the OE ball joint, allowing for full bump and droop travel of the front suspension while eliminating bind.

The ICON 2.0 Aluminum Series internal reservoir rear shocks, equipped with vehicle-specific valving to ensure balanced performance from front to rear, complete the package.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
