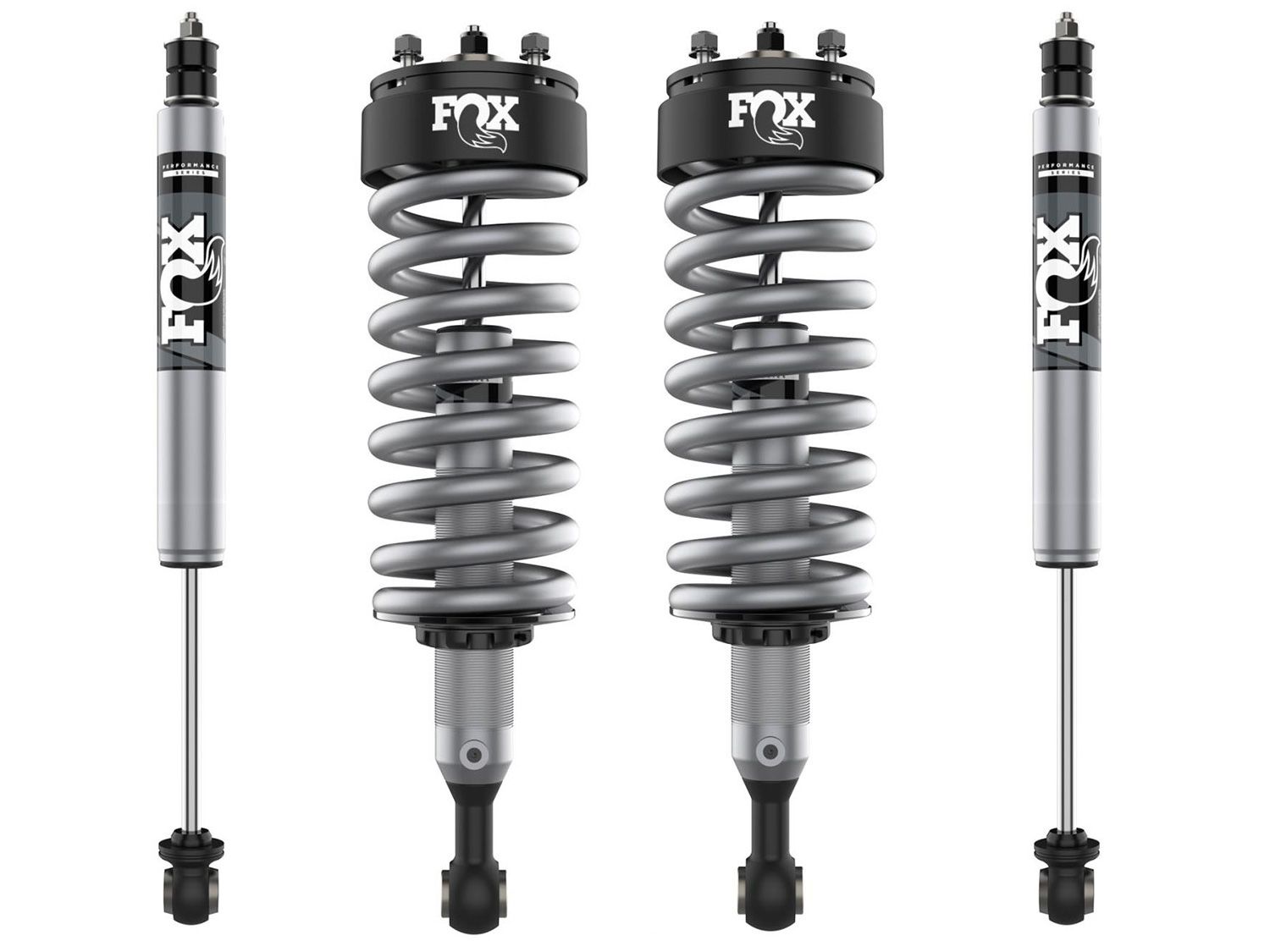

Tundra 2022-2025 Toyota - Fox 2.0 Performance Series IFP Coil-Overs / Shocks (0" to 2" Front Lift / Set of 4)

This set of FOX 2.0 Performance Series front coil-overs, and rear shocks for the third-generation Toyota Tundra is an awesome method for greatly improving suspension performance and gaining up to 2 inches of additional front height.

Experience superior ride quality and enhanced performance with Performance Series 2.0 coil-over and smooth-body internal floating piston (IFP) shocks, expertly engineered for the third-generation Toyota Tundra. These shocks provide a seamless bolt-on solution that levels your vehicle without putting unnecessary strain on ball joints or linkages, ensuring OEM reliability and vehicle behavior preservation.

Constructed with a type II anodized aluminum body, these shocks efficiently dissipate heat and resist corrosion, outperforming traditional painted steel shocks. The shock body incorporates an internal floating piston (IFP) that separates shock oil from high-pressure nitrogen, optimizing damping for an unrivaled driving experience. These FOX shocks are not only built to endure the lifetime of your vehicle but are also fully serviceable and re-valveable for continued high performance. The 2.0 Performance Series shocks are crafted precisely, featuring a 2.0-inch impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body. The application-specific springs and 5/8-inch hard chrome-plated steel shafts ensure robust durability and exceptional performance. Designed with vehicle-specific valving, these shocks maximize handling precision and consistent damping, while a redundant sealing pack system—comprising a main seal, wiper seal, and scraper seal—ensures reliable operation under all conditions.

Enjoy the benefits of maintaining optimal ride height (0 to 2 inches) with preload adjustment, enhancing vehicle articulation and stability. The on-road comfort and performance-oriented valving deliver a connected ride with reduced vehicle sway. At the same time, a two-stage shim stack enhances off-road bottom-out resistance and minimizes road vibration and harshness. With FOX Performance Series shocks, experience a superior blend of comfort and control tailored for your Tundra.

Features & Benefits:

• Provides 0 to 2 inches of front lift (adjustable height)
• 2.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body
• Application-specific springs
• 5/8" hard chrome-plated steel shafts
• Vehicle-specific valving to maximize performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Retain precise handling and consistent damping
• Maintain optimal ride height with preload adjustment
• Vehicle-specific springs enhance articulation and increase stability
• On-road comfort and performance-minded valving for a connected ride with less vehicle sway
• The two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness
• Aluminum shock bodies efficiently dissipate heat and resist corrosion compared to stock-painted steel shocks
• Compete set: 2) front coilovers / 2) rear shocks

Front Coilover Specs

• Extended Length: 21.230 inches
• Compressed Length: 14.900 inches
• Travel: 5.290 inches
• Top Mount: OEM
• Bottom Mount: Eyelet

Rear Shock Specs

• Extended length: 24.720"
• Compressed length: 16.000"
• Travel length: 8.720"
• Top mount: Stem
• Bottom mount: Eyelet
