This 9-inch suspension lift kit for the 1977 Ford F150 4wd truck is a massive lift that will allow from larger diameter tires while upgrading critical suspension components. These kits were designed to give superior performance from highway handling and towing and excellent off-road stability. This is achieved using a combination of coil springs, radius arm drop brackets with C bushings, an adjustable drag link, lower tie rod assembly and an adjustable track bar. Coil springs are pre-settled to reduce height changes. C bushings and a radius arm drop bracket will correct the negative caster degree angle, which is one of the biggest problems with the F150. These are the most complete kits on the market.

Since 1994, Jack-it has specialized in lifted trucks and knows how important it is to get all the parts required to do the job right. Our custom packages only use top-quality components, and our kits feature extra parts not found in a standard lift kit.  This results in a more complete lift kit that, in most cases, installs easier and performs better.

An upgraded version of this lift kit is available that includes rear leaf springs (see below in related items).

Top Features and Benefits

• Allows for larger diameter tires
• Replaces worn suspension items that can improve handling
• Top-quality components
• Converts steering from Y-Style to T-Style (T-Style was standard on 78-79 models)
• Complete kit (includes parts not found in most kits on the market)

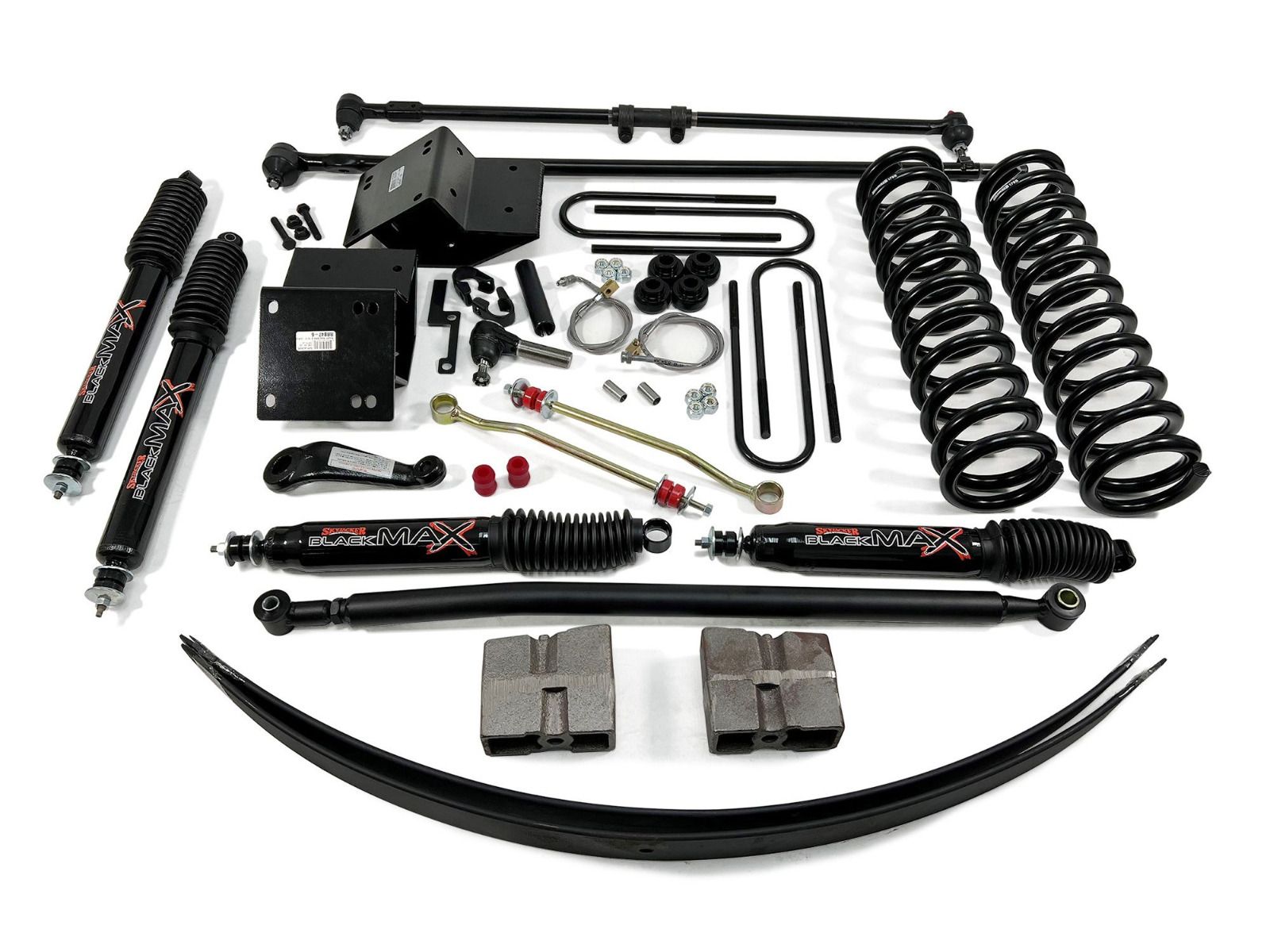

Kit Includes

• Front Coil Springs (pair)
• C-Bushings
• Radius Arm Drop Brackets
• Adjustable Front Track Bar
• Adjustable Drag Link
• Lower Tie Rod Assembly
• Front and Rear Brake Lines
• Extended Front Sway Bar End Links
• Drop Pitman Arm
• Rear Add-a-leafs
• Rear Cast Iron Blocks
• Extend U-Bolts
• Front and Rear Shocks
