5" 2020-2023 Jeep Gladiator 4wd Trail Lift Kit by Fabtech

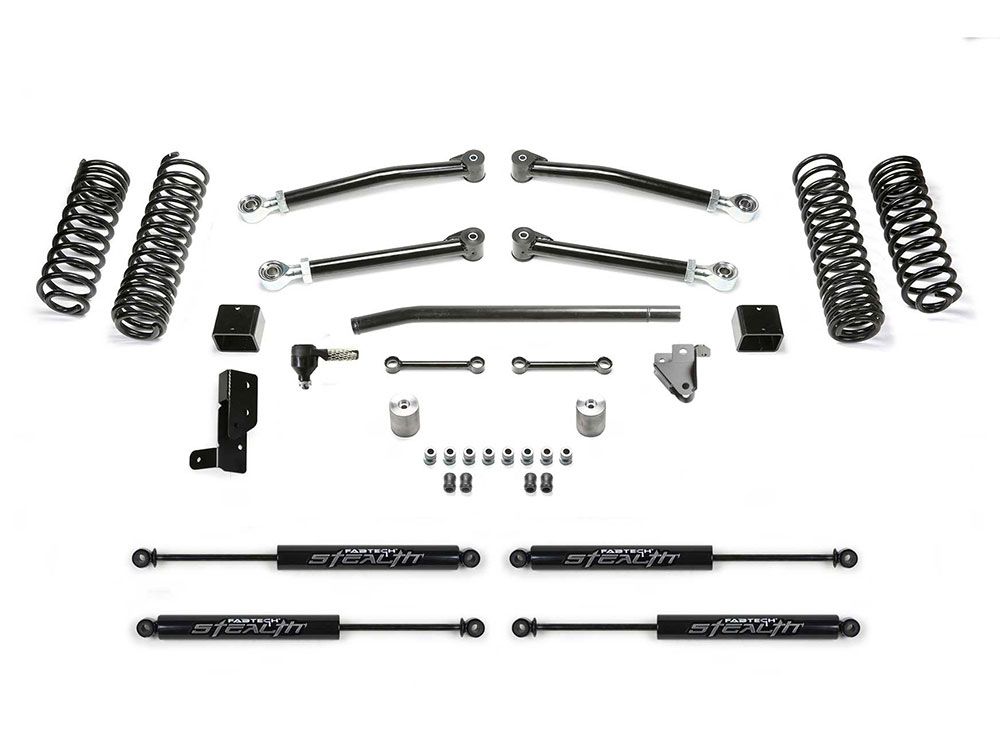

The Fabtech K4175M 5-inch Trail system lift kit for the Jeep Gladiator is designed to improve suspension performance in all conditions (off-road, rock crawling, and highway travel) while providing additional fender clearance for larger diameter tires.  Included are heavy duty control arms constructed of 1.75” OD. .250” thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5-Ton Joint for longevity and a quiet ride.  Dual rate front and rear coil springs increase suspension travel and provide a soft highway ride and firmer ride when hauling additional payload. To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.

Top Features and Benefits

• Alows us of up to 37 inch diameter tires
• Improved suspension performance on and off-road
• Additional fender clearance for larger diameter tires
• Dual rate front and rear coil springs for an awesome ride
• Heavy duty lower control arms with 5 ton threaded joints
• Front and rear track bar relocation brackets to keep axles centered
• Heavy duty flipped draglink
• Front and rear extended sway bar links
• Front and rear bump stop extensions
• Limited Lifetime Warranty

Recommended Tires with Stock Fenders

• Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
• Tire Size – 37/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
• Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming

Recommended Tires with Tube Fenders

• Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/no trimming
• Tire Size – 40/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
