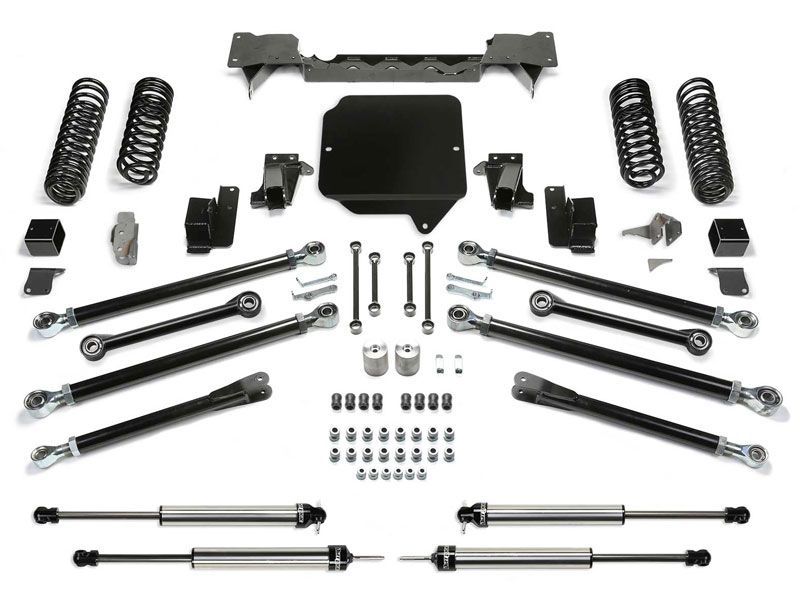

5" 2018-2024 Jeep Wrangler JL 4 Door Crawler Lift Kit by Fabtech

This Fabtech K4144DL / K4145DL 5 inch Crawler lift kit for the Jeep Wrangler JL is an awesome suspension upgrade for those serious about their off-roading.  This long arm lift kit will increase suspension articulation while improving suspension performance and durability.

A key part of the mounting of the Crawler’s 5 Ton Link Arms to the frame is the geometry and ground clearance. The location of the frame side of the link arms is critical in providing superior handling throughout the travel range. Fabtech has found the sweet spot geometry for the link arms that provide a superior driving long arm system compared to all others on the market.

Front link arm are mounted to a full width crossmember that spans frame rail to frame rail. This crossmember is a key in not only in mounting the Links arms at the correct geometry but it adds critical strength to the lighter weight JL frame for hard offroad use. Rear links attach to new frame mounts on the side of the frame for increased ground clearance and approach angle.

The Fabtech lower Link Arms are massive and built of 2" OD .313 thick wall tubing that is guaranteed not to bend. Upper and lower Link Arms includes the Fabtech’s legendary 5 Ton joints® that come with lifetime guarantee of never wearing out. They are superior for offroad use with a smooth quiet operation on the street.

Key Features

• Front & Rear Lower 5 Ton Link Arms
• Front Link Arm Crossmember & Skid Plate
• Rear Lower Link Arm Mounts
• Front & Rear Corner Specific Dual Rate Coil Springs
• Front & Rear Bump Stop Extensions
• Front & Rear Sway Bar Links
• Front & Rear Brake Line Drops
• Front & Rear Track Bar Bracket
• Heavy Duty Flipped Draglink
• Front Shock Mount Brackets
• Front & Rear Dirt Logic 2.25 Shocks

Tire and Wheel Combinations

• Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
• Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
• Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming

Dirt Logic Shocks

The included Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
