3" 2019-2024 Dodge Ram 1500 4WD (w/o factory air ride) Ball Joint UCA Lift Kit by Fabtech

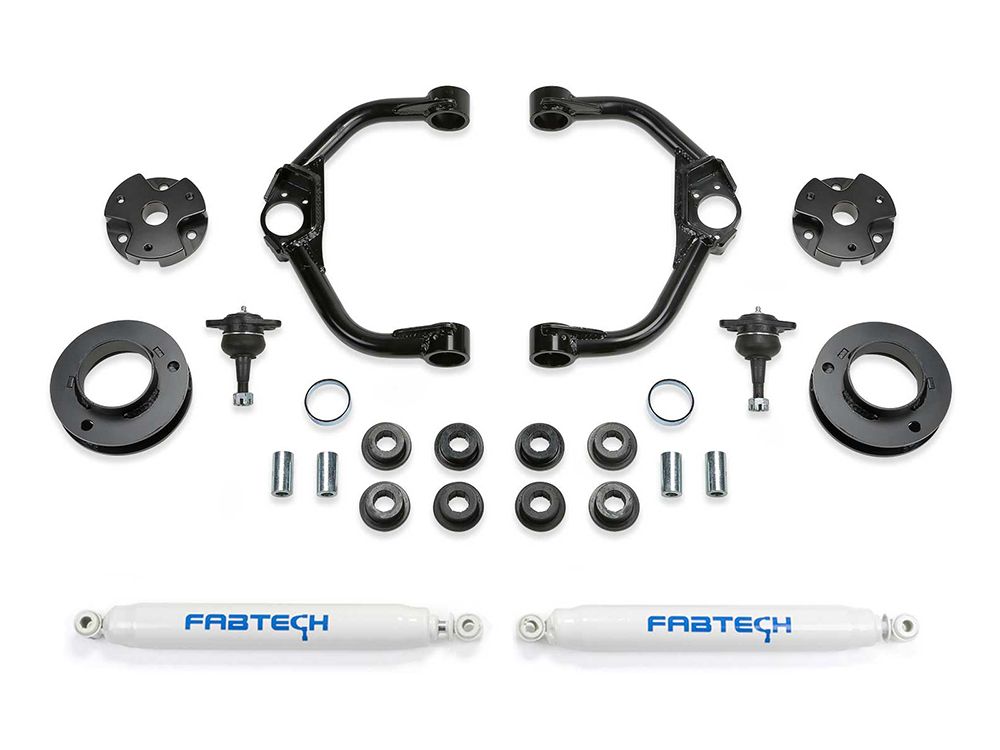

The Fabtech K3167 / K3167M 3 inch ball joint UCA (upper control arm) lift kit for the Ram 1500 trucks is an excellent upgrade to fit up to 35 inch diameter tires while maintaining a factory ride.  Engineered with tubular upper control arms that use heavy duty ball joints to eliminate any binding and steering will go full lock to lock without losing turning radius.  The front end is lifted using upper steel spacers that mount on top of the factory coilovers which maintains a factory ride.  Coil spring spacers lift the rear.  Choose between Fabtech hydraulic Performance shocks or upgrade to the monotube gas Stealth shocks.

Top Features and Benefits

• Allows use of up to 35 inch diameter tires
• Tubular upper control arms (UCA) with heavy duty ball joints for no binding
• Front and rear coil spacers maintain a factory ride
• Full lock to lock turning radius maintained
• Limited Lifetime Warranty

Tire and Wheel Fitment

• Tire Size – 35/12.50R18 Wheel Size – 18×9 wheels w/ 5” BS w/ minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
