3.5" 2019-2023 Ford Ranger 4wd Lift Kit by Fabtech

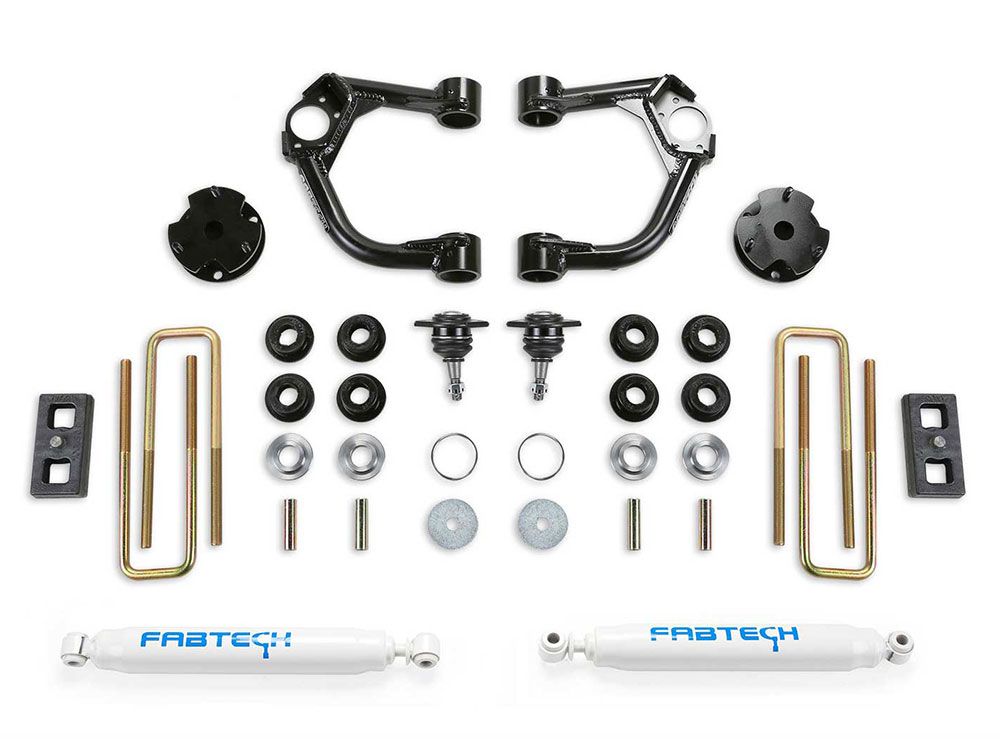

This Fabtech K2322 / K2322DL 3.5 inch lift kit for the Ford Ranger is a great way to lift your Ranger and fit larger diamter tires for an awesome off-road look. Included are Fabtech's tubular upper control arms that use a heavy duty joint which allows for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential. Lift is accomplished wth steel spacers that utilize the factory Coilover shocks for a stock ride.

Rear lift comes from 1.5" blocks and u-bolts which will give a level ride.

Choose between rear Fabtech Performance (hydraulic) shocks or upgrade to the amazing Dirt Logic shocks that feature a stainless steel body and gas pressurized.

Top Features and Benefits

• 3.5" front lift / 1.5" rear lift for a level ride
• Allows for use of larger diameter tires
• Tubular upper control arms with heavy duty ball joints and urethane bushings
• Upper struts spacers maintain a factory like ride
• Rear 1.5 inch blocks and extended ubolts
• Limited Lifetime Warranty

Recommended Tire and Wheel Sizes:

• 275/65R17 tires w/ 18x9 wheels w/ 5" BS w/ minor trimming
• 265/70R17 tires w/ Factory Wheels w/ minor trimming
• 255/75R17 tires w/ Factory Wheels w/ minor trimming
• 265/65R18 tires w/ Factory Wheels w/ minor trimming
• 285/55R20 tires w/ 20x9 wheels w/ 5" BS w/ minor trimming
