6" 2017-2022 Ford F250/F350 4wd (w/diesel engine) 4-Link Coilover Lift Kit by Fabtech

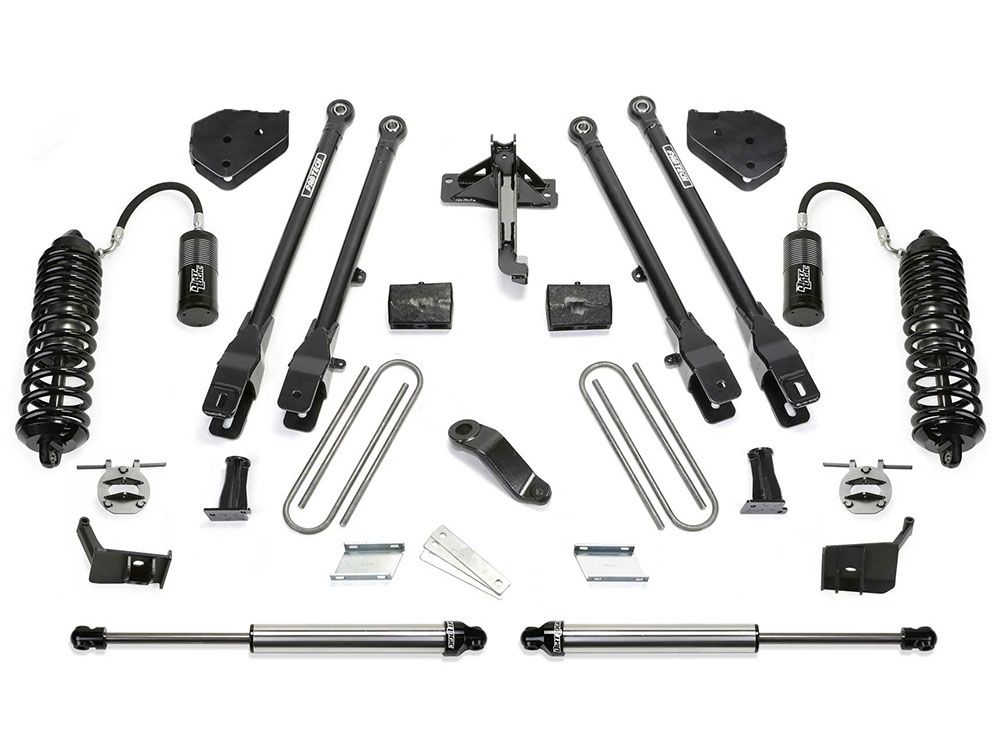

This Fabtech K2244DL 6 inch 4-link coilover lift kit for the Ford F250 / F350 Super Duty trucks is the ultimate suspension upgrade to fit up to 37 inch diameter tires.  Built around Dirt Logic Resi coilovers that replace the factory coils springs and a 4-link arm system that replaces factory radius arms to give unmatched suspension ride qualtiy, articulation and wheel travel.  The 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes sway bar drops, track bar relocation bracket, pitman arm, and a rear block & u-bolt kit.

Top Features and Benefits

• Allows use of up to 37 inch diameter tires
• Dirt Logic coilover give unmatched ride quality and suspension performance
• 4 Link System replaces factory radius arms for superior handling and suspension articulation
• 1 inch uniballs used in link arms for strength
• Rear Dirt Logic 2.25 stainless steel body shocks
• Track bar bracket keeps axle centered
• Extended length coil springs lift front end while maintaining ride quality
• Black powder coated for durabiltiy
• Limited Lifetime Warranty
• 5 Year, 60,000 Mile Powertrain Warranty on select models

Recommended Tires and Wheels

• 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
• 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
• 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming
