12" 2020-2024 GMC Sierra 2500HD/3500HD Elite Lift Kit (w/Elka 2.5 Resi Shocks) by Cognito

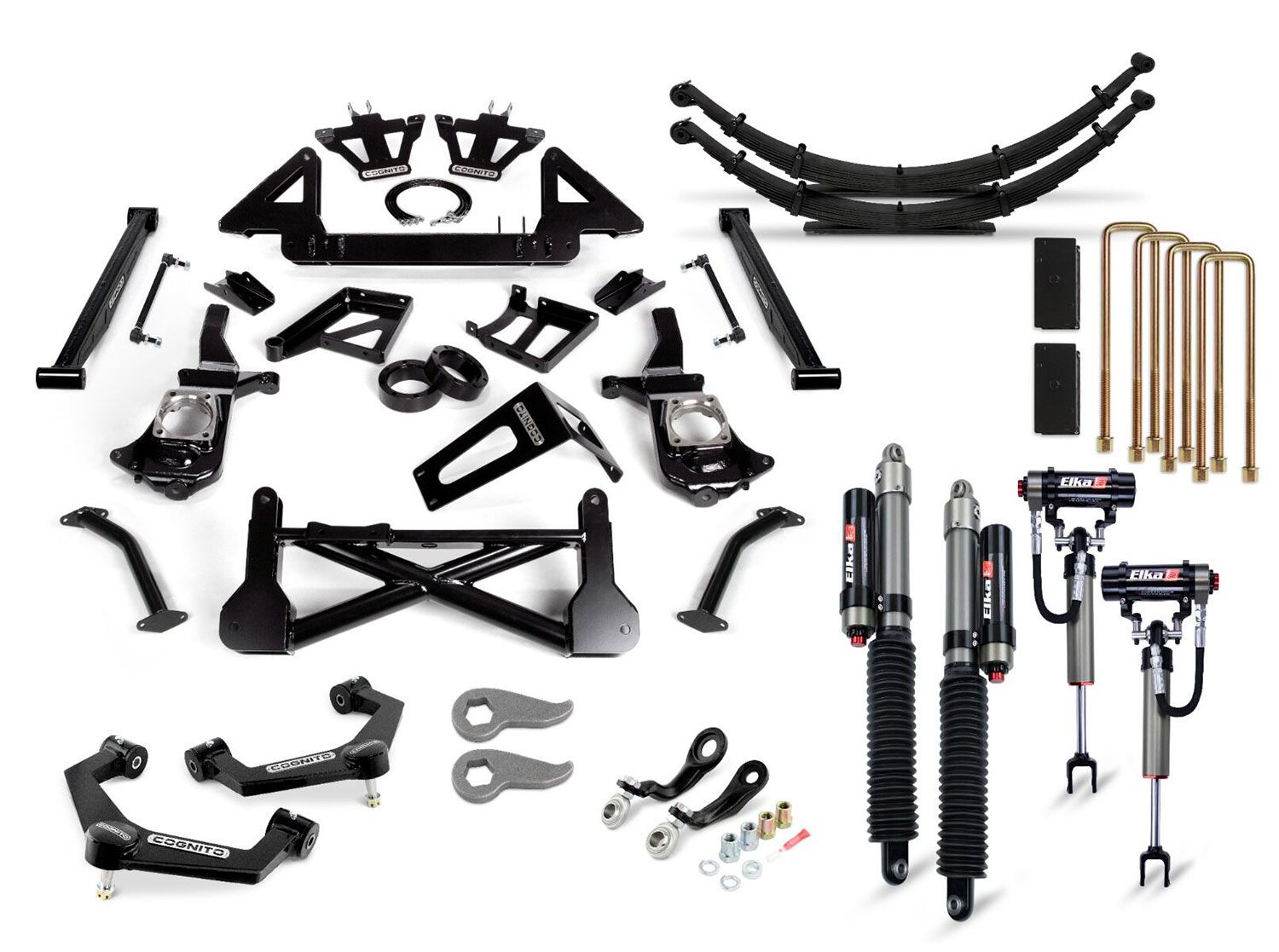

Cognito's 210-P1178 12-inch Elite lift kit for the GMC Sierra 2500HD/3500HD 2WD/4WD includes premium Cognito components, providing a comprehensive and reliable solution for fitting larger-diameter tires (up to 40-inch diameter) for a more aggressive look and improved off-road performance.

Cognito components are engineered, manufactured, and assembled in the USA, ensuring top-notch quality. The Cognito Lift Kit is designed to deliver superior ride quality and corrected CV joint angles for enhanced vehicle handling. This kit features an integrated skid plate that securely connects the front and rear cross members, providing exceptional front-end rigidity. Custom-fabricated spindles (steering knuckles) will correct steering geometry.

In the rear, Deaver brand leaf springs replace the rear lift OEM springs, providing 4 inches of lift while maintaining excellent ride quality. This is achieved through high-quality spring steel construction with a higher leaf count for a more compliant ride. A 5-inch rear block kit is included for a total of 9-inches in the rear lift.

The Cognito Ball Joint SM Series Upper Control Arms enhance style, function, and performance by correcting the ball joint angle for lifted and leveled applications. This adjustment improves droop travel, leading to a smoother ride. The control arms are constructed from boxed sheet metal, CNC robot welded, and finished with a semi-gloss black powder coating. The kit includes ball joints, new crush sleeves, and polyurethane bushings.

The Cognito Pitman and Idler Arm Support Kit (PISK) addresses long-standing steering system issues in Chevy and GMC trucks and SUVs. This innovative, patented design provides additional support to the pitman and idler arms, eliminating the center link's forward and rearward movement, which enhances overall steering stability.

The ELKA 2.5 Shocks feature 2.5-inch-diameter bodies of hard-anodized aluminum for cooler dampening. They come equipped with Dual-Speed Compression adjustment, allowing precise fine-tuning for better vibration attenuation and cabin noise reduction. These shocks are optimized for both on-road and off-road conditions, providing smoother rides, more stable handling, and reduced front-end dives during braking or cornering. They also improve rear-end stability when towing or carrying loads.

Features and Benefits:

• 12-inch front lift / 9-inch rear lift
• Allows use of up to a 40x13.5 Tire on a 10-inch Wide Wheel with 4.5-inch Backspacing
• Cognito components are engineered, manufactured, and assembled in the USA for high-quality performance.
• Deaver rear leaf springs replace the factory spring and add 4-inches of lift height, providing excellent ride quality
• Rear 5-inch Block and U-Bolt Kit include powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-bolts.
• Provides superior ride quality and corrected CV joint angles.
• Integrates skid plate and front / rear cross-members for enhanced front-end rigidity.
• Includes custom-fabricated spindles (steering knuckles), correct steering geometry
• Cognito Ball Joint SM Series Upper Control Arms correct ball joint angle, improve droop travel, and enhance ride quality for lifted and leveled applications.
• Control arms are made from boxed sheet metal, CNC robot-welded and finished with a semi-gloss black powder coating. They include ball joints, new crush sleeves, and polyurethane bushings.
• The Cognito Pitman and Idler Arm Support Kit (PISK) addresses steering stability issues in Chevy and GMC trucks and SUVs by eliminating the center link's forward and rearward movement.
• Estimated install time: 15 hours
• ELKA 2.5 shocks feature Dual Speed Compression adjustment for precise damping control
• Shocks feature 2.5-inch-diameter bodies of hard-anodized aluminum for cooler dampening
• Made in the USA
