2.5" 2011-2016 Ford F250/F350 4wd (w/Diesel Engine) Starter System by Carli Suspension

This Carli Suspension CS-FLVL-STR-SIG-11 2.5 inch Starter Lift System for the Ford F250 / F350 4wd diesel models is a high quality kit that will lift the front end while also improving ride quality and suspension performance.

Featured in this leveling system are 2.5 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli Signature Series shock absorbers. These shocks use a 2" diameter body with Zinc plating and clear coating for corrosion resistance. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Features & Benefits:

• 2.5 inch front lift / 0 to 2 inch rear lift (rear lift optional)
• High quality components
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli Signature 2.0 IFP Front & Rear Shocks - 2" diameter body with zinc plating and internal reservoir
• Designed to improve ride quality
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Front Travel = 9" / Rear Travel = stock
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

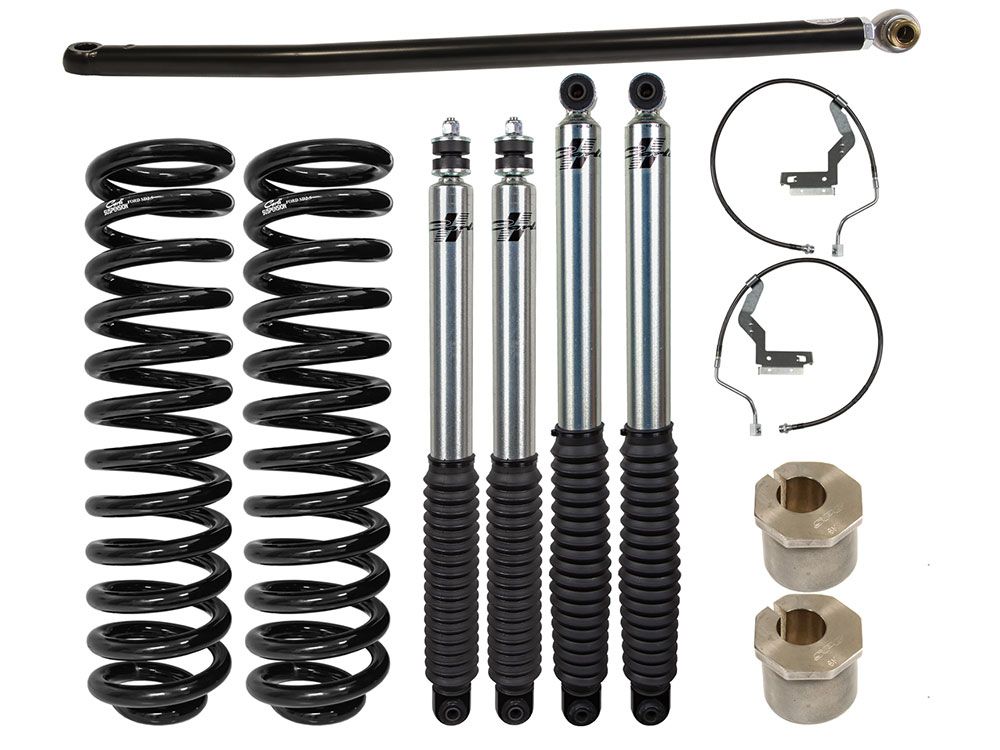

Components Included:

• CS-FLC-05: Front Coil Springs
• CS-FSIG20SPKG-LVL-05: Carli Signature Series 2.0 IFP Shocks, Front and Rear
• CS-FORDBBL-11: Brake Lines, Front
• CS-FCASTERSHIM-25: 2 degree Caster Shims
• CS-FPRB-05: Adjustable Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
