3.5" 2020-2022 Ford F250/F350 4wd (w/Diesel Engine) Leveling System by Carli Suspension

This Carli Suspension CS-FLVL-SIG-17 3.5 inch front leveling system for the Ford F250 / F350 4wd diesel models is a high quality kit that will lift the front end while also improving ride quality and suspension performance.

Featured in this leveling system are 3.5 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli Signature Series shock absorbers. These shocks use a 2" diameter body with Zinc plating and clear coating for corrosion resistance. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits:

• 3.5 inch front lift / 0 to 1 inch rear lift (optional rear lift)
• High quality components
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli Signature 2.0 IFP Front Shocks - 2" diameter body with zinc plating and internal reservoir
• Designed to improve ride quality
• Stainless steel braided extended front brake hoses
• Front Travel = 9" / Rear Travel = 13"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

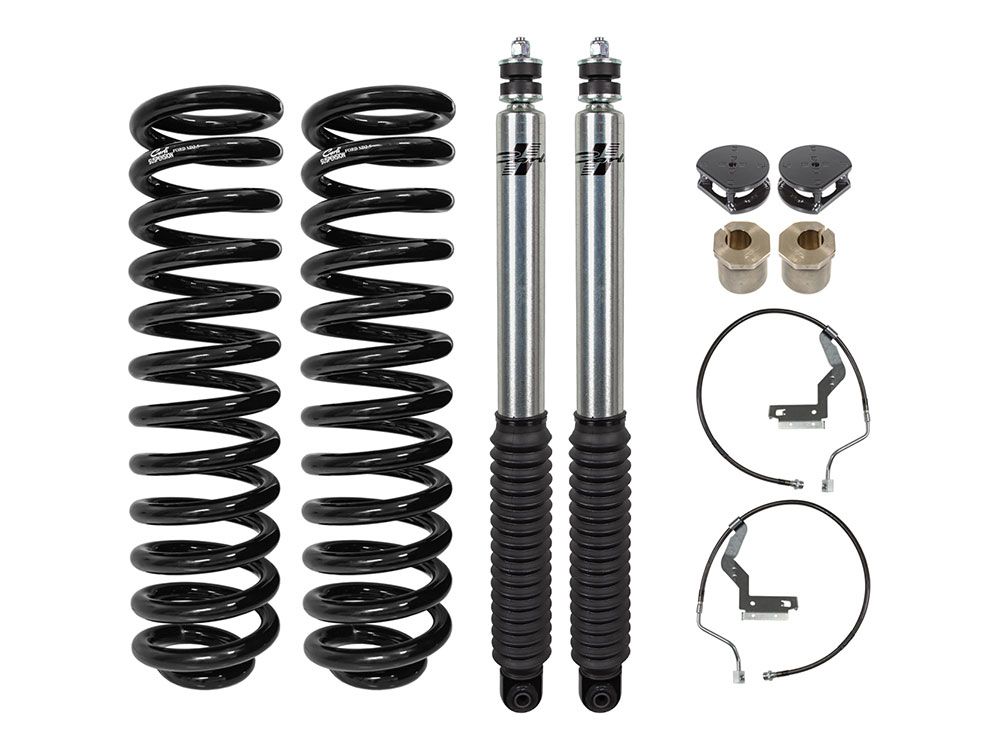

Components Included:

• CS-FLC-05: Front Coil Springs
• CS-FSIG20SPKG-FRONT-LVL-05: Carli Signature Series 2.0 IFP Shocks
• CS-FORDBBL-LVL-17-F: Front Brake Lines
• CS-FCASTERSHIM-25: 2 degree Caster Shims
• CS-FBDF-25-17: High Clearance Front Bump Stops

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
