3" 1994-2002 Dodge Ram 2500/3500 4wd (w/Diesel Engine) Leveling System by Carli Suspension
$910.00
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Got Questions? We can help!
888-452-2548
Product Description

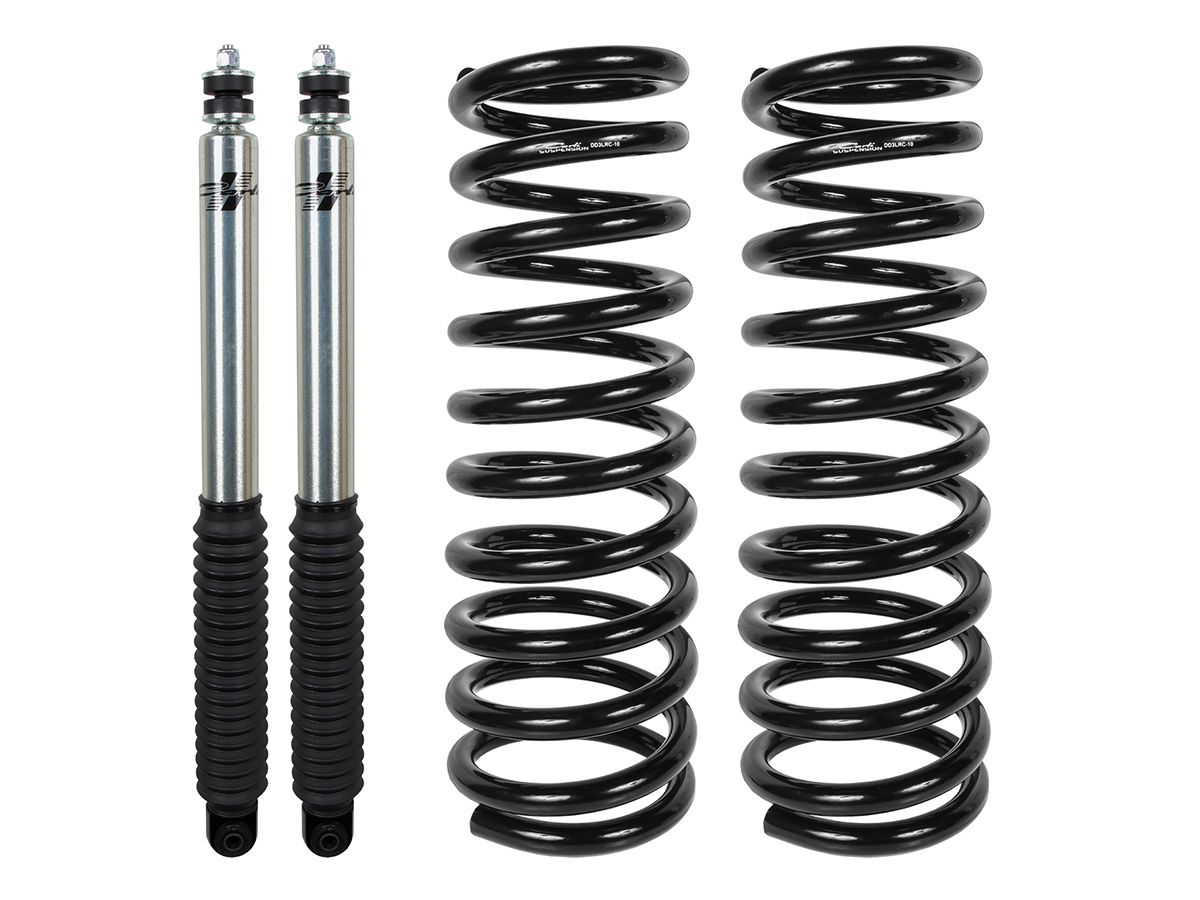

This Carli Suspension CS-DLEVEL-94 3 inch front leveling system for the Dodge Ram 2500 / 3500 4wd diesel models is a high quality kit that will lift the front end enough to sit level with the rear while also improving ride quality and suspension performance. Featured in this leveling system are 3 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli Signature Series shock absorbers. These shocks use a 2" diameter body with Zinc plating and clear coating for corrosion resistance. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured. Features & Benefits:
Components Included:
Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below. |
| Important Notes1. Fits with diesel engine only 2. While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly (see options below) |
Available Options
Front Sway Bar (required)
1 of 2 options
Ram 2500 / Ram 3500 1998.5-2009 Dodge 4WD (w/0-3" of Front Lift) Extended End Links by Carli SuspensionRead More
Carli Suspension's Front Sway Bar End Links for the Dodge Ram 2500 / 3500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.
- Adjustable length allows for fitment from stock height up to 3 inches of front lift
- 17-4 Machined Stainless Steel
- Eliminates sway bar binding on lifted models
- 1/2" FK Chromoly Rod end
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Front Sway Bar End Links for the Dodge Ram 2500 / 3500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.
- Adjustable length allows for fitment from stock height up to 3 inches of front lift
- 17-4 Machined Stainless Steel
- Eliminates sway bar binding on lifted models
- 1/2" FK Chromoly Rod end
- Carli provides a Limited Lifetime Warranty
$275
2 of 2 options
Ram 2500 / Ram 3500 1994-1998 Dodge 4WD (w/0-3" of Front Lift) Extended Front Sway Bar End Links by Carli SuspensionRead More
Carli Suspension's Front Sway Bar End Links for the Dodge Ram 2500 / 3500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.
- Adjustable length allows for fitment from stock height up to 3 inches of front lift
- 17-4 Machined Stainless Steel
- Eliminates sway bar binding on lifted models
- 1/2" FK Chromoly Rod end
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Front Sway Bar End Links for the Dodge Ram 2500 / 3500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.
- Adjustable length allows for fitment from stock height up to 3 inches of front lift
- 17-4 Machined Stainless Steel
- Eliminates sway bar binding on lifted models
- 1/2" FK Chromoly Rod end
- Carli provides a Limited Lifetime Warranty
$275
Control Arms
1 of 2 options
Ram 2500 / Ram 3500 1994-1998 Dodge 4WD (w/3" Suspension Lift) Extended Control Arms by Carli SuspensionRead More
Carli Suspension's Extended Control Arm Kit for the Dodge Ram 2500 / 3500 are designed for models lifted 3 inches in the front to re-center the front axle.
- Re-centers front axle on 3" suspension kits
- Fits 12mm upper/14mm lower hardware - Factory bolt shank diameter
- Joint assembly machined with a 17-4 Stainless ball center
- Includes Energy Suspension bushings
- Box 0.120" wall mild steel construction
- Includes 4 Arms, 2 upper, 2 lower
- Zerk fittings for ease of servicing
- Serviceable, Vibration damping joints with stainless ball centers
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Extended Control Arm Kit for the Dodge Ram 2500 / 3500 are designed for models lifted 3 inches in the front to re-center the front axle.
- Re-centers front axle on 3" suspension kits
- Fits 12mm upper/14mm lower hardware - Factory bolt shank diameter
- Joint assembly machined with a 17-4 Stainless ball center
- Includes Energy Suspension bushings
- Box 0.120" wall mild steel construction
- Includes 4 Arms, 2 upper, 2 lower
- Zerk fittings for ease of servicing
- Serviceable, Vibration damping joints with stainless ball centers
- Carli provides a Limited Lifetime Warranty
$865
2 of 2 options
Ram 2500 / Ram 3500 1998.5-2002 Dodge 4WD (w/3" Suspension Lift) Extended Control Arms by Carli SuspensionRead More
Carli Suspension's Extended Control Arm Kit for the Dodge Ram 2500 / 3500 are designed for models lifted 3 inches in the front to re-center the front axle.
- Re-centers front axle on 3" suspension kits
- Fits 14mm upper/16mm lower hardware - Factory bolt shank diameter
- Joint assembly machined with a 17-4 Stainless ball center
- Includes Energy Suspension bushings
- Box 0.120" wall mild steel construction
- Includes 4 Arms, 2 upper, 2 lower
- Zerk fittings for ease of servicing
- Serviceable, Vibration damping joints with stainless ball centers
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Extended Control Arm Kit for the Dodge Ram 2500 / 3500 are designed for models lifted 3 inches in the front to re-center the front axle.
- Re-centers front axle on 3" suspension kits
- Fits 14mm upper/16mm lower hardware - Factory bolt shank diameter
- Joint assembly machined with a 17-4 Stainless ball center
- Includes Energy Suspension bushings
- Box 0.120" wall mild steel construction
- Includes 4 Arms, 2 upper, 2 lower
- Zerk fittings for ease of servicing
- Serviceable, Vibration damping joints with stainless ball centers
- Carli provides a Limited Lifetime Warranty
$865
Vehicle Fitment
| Make | Dodge |
|---|---|
| Model | Ram 2500, Ram 3500 |
| Year Fitment | 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | Carli Suspension |
|---|---|
| Manufacturer Part Number | CS-DLEVEL-94 |
| Item Number | car_cs-dlevel-94 |
| MPN(UPC) | 883584146889 |
| Product Line | Leveling Kits |
| Lift Height | 3 inch |
WARNING : Cancer and Reproductive Harm. www.p65warnings.ca.gov/
3" 1994-2002 Dodge Ram 2500/3500 4wd (w/Diesel Engine) Leveling System by Carli Suspension Brand: Carli Suspension | SKU: CS-DLEVEL-94
- +
