Bronco Ford 2021-2024 Ford Bronco 4wd Carli-Spec King 2.5 Coilover Kit (1-3" Lift) by Carli Suspension Brand: Carli Suspension | SKU: CS-BR25SPKG-21
$6005
- +
6005

Bronco Ford 2021-2024 Ford Bronco 4wd Carli-Spec King 2.5 Coilover Kit (1-3" Lift) by Carli Suspension

Brand: Carli Suspension | SKU: CS-BR25SPKG-21
$6,005.00

Bronco Ford 2021-2024 Ford Bronco 4wd Carli-Spec King 2.5 Coilover Kit (1-3" Lift) by Carli Suspension

Brand: Carli Suspension | SKU: CS-BR25SPKG-21
$6,005.00
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

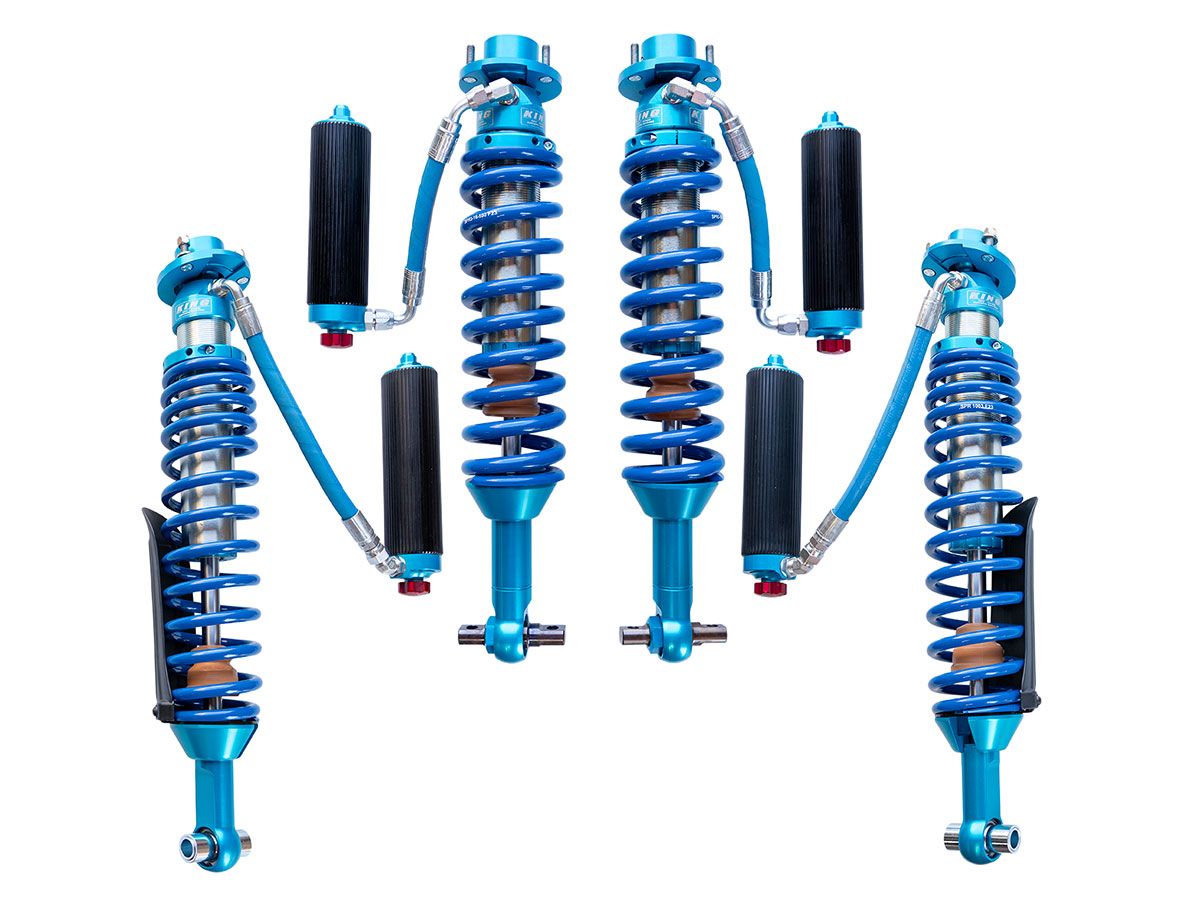

This Carli Suspension CS-BR25SPKG-21 Carli-Spec King 2.5 Coilover Kit for the the Ford Bronco 4wd is an amazing upgrade that will increase ride height while greatly improving on and off-road performance.

These custom Carli King 2.5 coilovers use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for off-road models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

Designed to give a lift of 3 inches to non-Sasquatch models and 1 inches of lift to Sasquatch models. Tuned specifically for improved off-road performances while keeping excellent on-road performance. Compression adjusters allow for custom fine tuning of your ride by adjusting the dials housed on the remote reservoirs.

Features & Benefits:

  • 3 inch front lift / 3 inch rear lift (non-Sasquatch models)
  • 1 inch front lift / 1 inch rear lift (Sasquatch models)
  • 2.5" diameter aluminum body with remote reservoirs
  • Exclusive 17-4 stainless steel shaft that is machined and polished
  • Compression adjusters mounted to remote reservoirs allow for fine tuning of ride with tune of dial
  • Includes front and rear reservoir mounts
  • Custom tuned by Carli
  • Rear roost guards
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Greatly improves ride quality and off-road performance
Important Notes1. 3 inch front lift / 3 inch rear lift (non-Sasquatch models)
2. 1 inch front lift / 1 inch rear lift (Sasquatch models)

Available Options

Upper Control Arms
Bronco 2021-2024 Ford 4WD (w/1" to 3" Suspension Lift) Billet Aluminum Upper Control Arms by Carli Suspension

Carli Suspension's CS-BRUCA-21 Upper Control Arm Kit for the Ford Bronco is a great suspension upgrade designed for models lifted 1 to 3 inches in the front to correct caster and camber. These unique arms are built from 6061 billet aluminum with a hard anodized coating for an amazing look. Polyurethane bushing with grease flutes are included for long life and easy replacement. 17-4 stainless steel alignment spacers are integrated with bushing crush sleeves. Huge 1.25-inch FK Uniball are used for exellent strength and longevity. The uniball pair with 12-point bolt and Carli machined misalignment spacer to connect the arms to the factory knuckles.

  • Correct front end cast and camber on lifted models (1 to 3 inches)
  • 6061 Billet Aluminum Construction
  • Hard Anodized Coating
  • 1.25” FK Uniball
  • 17-4 stainless steel alignment spacers are integrated with bushing crush sleeves
  • Polyurethane bushings with grease flutes
  • Zerk fittings for ease of servicing
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-BRUCA-21 Upper Control Arm Kit for the Ford Bronco is a great suspension upgrade designed for models lifted 1 to 3 inches in the front to correct caster and camber. These unique arms are built from 6061 billet aluminum with a hard anodized coating for an amazing look. Polyurethane bushing with grease flutes are included for long life and easy replacement. 17-4 stainless steel alignment spacers are integrated with bushing crush sleeves. Huge 1.25-inch FK Uniball are used for exellent strength and longevity. The uniball pair with 12-point bolt and Carli machined misalignment spacer to connect the arms to the factory knuckles.

  • Correct front end cast and camber on lifted models (1 to 3 inches)
  • 6061 Billet Aluminum Construction
  • Hard Anodized Coating
  • 1.25” FK Uniball
  • 17-4 stainless steel alignment spacers are integrated with bushing crush sleeves
  • Polyurethane bushings with grease flutes
  • Zerk fittings for ease of servicing
  • Carli provides a Limited Lifetime Warranty
$1695
Torsion Sway Bar
Bronco 2021-2024 Ford 4WD Front Torsion Sway Bar by Carli Suspension

Carli Suspension offers a Premium CS-BRTSB-21 Front Torsion Sway Bar Kit for the Ford Bronco that is designed for superior on-road ride and handling while increasing articulation. Using Carli's innovative torsion sway bar system this kit replaces the factory sway bar with a much more dynamic option to control sway while improving suspension performance.

  • Designed for superior on-road ride and handling
  • Increased articulation for off-roading
  • Allows front suspension to move freely without giving up control
  • Arms are made of doubled and welded 3/4" cold-rolled steel
  • Bar is heat treaded torsion bar
  • End Links made of FK Bearing 5/8 inch Chromoly Race Heims
  • 17-4 Stainless Steel End Links
  • Direct bolt-on installation
  • Premium quality construction
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension offers a Premium CS-BRTSB-21 Front Torsion Sway Bar Kit for the Ford Bronco that is designed for superior on-road ride and handling while increasing articulation. Using Carli's innovative torsion sway bar system this kit replaces the factory sway bar with a much more dynamic option to control sway while improving suspension performance.

  • Designed for superior on-road ride and handling
  • Increased articulation for off-roading
  • Allows front suspension to move freely without giving up control
  • Arms are made of doubled and welded 3/4" cold-rolled steel
  • Bar is heat treaded torsion bar
  • End Links made of FK Bearing 5/8 inch Chromoly Race Heims
  • 17-4 Stainless Steel End Links
  • Direct bolt-on installation
  • Premium quality construction
  • Carli provides a Limited Lifetime Warranty
$1350
Tie Rod System
Bronco 2021-2024 Ford 4WD Steering Tie-Rod System by Carli Suspension

Carli Suspension's CS-BRS-21 Steering Tie-Rod System for the Ford Bronco is an amazing suspension upgrade to greatly strengthen the inner and outer tie-rods. The factory tie-rods can be a weak link for Broncos especially while off-roading with oversized tires and have been known to fail. Carli has manufactered a great solutions completely replaces the tie-rod steering assembly. Using high quality components and excellent Carli engineering this steering systems is the premium steering choice for Broncos.

  • Significant improvement in strength and durability compared to stock tie-rod assemblies
  • Inner Tie-Rod End is both greasable and rebuildable
  • Features a Billet Double-Shear Knuckle Bracket for the Outer Tie-Rod End
  • Utilizes a Billet Outer Tie-Rod housing with a 3/4″ Teflon-Lined FK Heim
  • The Tie-Rod is made from Heat-Treated 4140 steel and is Moly Coated
  • Provides less than half the amount of toe-change as the factory tie-rod throughout an extended travel range
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-BRS-21 Steering Tie-Rod System for the Ford Bronco is an amazing suspension upgrade to greatly strengthen the inner and outer tie-rods. The factory tie-rods can be a weak link for Broncos especially while off-roading with oversized tires and have been known to fail. Carli has manufactered a great solutions completely replaces the tie-rod steering assembly. Using high quality components and excellent Carli engineering this steering systems is the premium steering choice for Broncos.

  • Significant improvement in strength and durability compared to stock tie-rod assemblies
  • Inner Tie-Rod End is both greasable and rebuildable
  • Features a Billet Double-Shear Knuckle Bracket for the Outer Tie-Rod End
  • Utilizes a Billet Outer Tie-Rod housing with a 3/4″ Teflon-Lined FK Heim
  • The Tie-Rod is made from Heat-Treated 4140 steel and is Moly Coated
  • Provides less than half the amount of toe-change as the factory tie-rod throughout an extended travel range
  • Carli provides a Limited Lifetime Warranty
$1395
Rear Control Arms
Bronco 2021-2024 Ford 4WD (w/1-3" Suspension Lift) Rear Control Arms by Carli Suspension

Carli Suspension's CS-BRCA-21 Control Arm Kit for the Ford Bronco are a heavy duty upgrade over factory rear control arms. Using 3/16 inch clam-shell contruction with 1/4 inch interal x-bracing that run the length of the arms making them extremely durable.

  • Built for extreme strength
  • Improves ride quality of factory arms
  • 3/16 inch clam shell construction
  • 1/4 inch Internal X-Bracing
  • Shifts rear axle rearward 3/8 inch for better tire performance at full bump
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-BRCA-21 Control Arm Kit for the Ford Bronco are a heavy duty upgrade over factory rear control arms. Using 3/16 inch clam-shell contruction with 1/4 inch interal x-bracing that run the length of the arms making them extremely durable.

  • Built for extreme strength
  • Improves ride quality of factory arms
  • 3/16 inch clam shell construction
  • 1/4 inch Internal X-Bracing
  • Shifts rear axle rearward 3/8 inch for better tire performance at full bump
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
$1799
Rear Control Arm Mount Skid Plates
Bronco 2021-2024 Ford 4WD Rear Lower Control Arm Mount Skid Plates by Carli Suspension

Carli Suspension's CS-BRSKID-RLCAM Rear Lower Control Arm Mount Skid Plates for the Ford Bronco act as an insurance policy for your rear control arms when extreme off-roading is in the forcast. Featuring heavy duty contruction these brackets are simple way to protect your Bronco.

  • Protects rear lower control arm mount from impact while off-roading
  • Heavy duty construction
  • Can be bolted on or welded
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-BRSKID-RLCAM Rear Lower Control Arm Mount Skid Plates for the Ford Bronco act as an insurance policy for your rear control arms when extreme off-roading is in the forcast. Featuring heavy duty contruction these brackets are simple way to protect your Bronco.

  • Protects rear lower control arm mount from impact while off-roading
  • Heavy duty construction
  • Can be bolted on or welded
  • Carli provides a Limited Lifetime Warranty
$225
Rear Shock Mount Skid Plates
Bronco 2021-2024 Ford 4WD Rear Lower Shock Mount Skid Plates by Carli Suspension

Carli Suspension's CS-BRSKID-SHOCK Rear Lower Shock Mount Skid Plates for the Ford Bronco act as an insurance policy for your rear shocks when extreme off-roading is in the forcast. Featuring heavy duty contruction these brackets are simple way to your shocks and mounts from impacts.

  • Protects rear lower shock mount from impact while off-roading
  • Heavy duty construction
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-BRSKID-SHOCK Rear Lower Shock Mount Skid Plates for the Ford Bronco act as an insurance policy for your rear shocks when extreme off-roading is in the forcast. Featuring heavy duty contruction these brackets are simple way to your shocks and mounts from impacts.

  • Protects rear lower shock mount from impact while off-roading
  • Heavy duty construction
  • Carli provides a Limited Lifetime Warranty
$150
Rear Adjustable Track Bar
Bronco 2021-2024 Ford 4WD (w/1-3" Lift) Adjustable Rear Track Bar by Carli Suspension

Carli Suspension offers a Premium Adjustable Rear Track Bar for your Ford Bronco. The CS-BRATB-21 track bar thanks to its adjustability can center the rear axle on models lifted up to 3 inches. The construction of our DATB Track Bars is robust, featuring 1/4″ wall DOM construction with an externally gusseted joint barrel. Carli's "CUB" joint incorporates a proven FK Hiem Joint at its core, surrounded by custom molded bushings for added protection. This assembly is then pressed into the reinforced frame-end housing of the track bar, held securely in place by a Stainless safety washer and snap ring.

  • Adjustable Track Bar allows axle rear centering on 1" to 3" of rear lift
  • Heavy Duty 1/4 inch Wall DOM Construction
  • JAMMIT nut boast 100% more surface area than standard jam nut
  • CUB frame joint combines with FK Axle Heim to dampen vibration
  • Carli provides a Limted Lifetime Warranty
Read More

Carli Suspension offers a Premium Adjustable Rear Track Bar for your Ford Bronco. The CS-BRATB-21 track bar thanks to its adjustability can center the rear axle on models lifted up to 3 inches. The construction of our DATB Track Bars is robust, featuring 1/4″ wall DOM construction with an externally gusseted joint barrel. Carli's "CUB" joint incorporates a proven FK Hiem Joint at its core, surrounded by custom molded bushings for added protection. This assembly is then pressed into the reinforced frame-end housing of the track bar, held securely in place by a Stainless safety washer and snap ring.

  • Adjustable Track Bar allows axle rear centering on 1" to 3" of rear lift
  • Heavy Duty 1/4 inch Wall DOM Construction
  • JAMMIT nut boast 100% more surface area than standard jam nut
  • CUB frame joint combines with FK Axle Heim to dampen vibration
  • Carli provides a Limted Lifetime Warranty
$495
Rock Sliders
Bronco 2021-2024 Ford 4WD (4-Door) Rock Sliders by Carli Suspension

Carli Suspension CS-BRRS-21 Rock Sliders for the Ford Bronco are a great addition for any Bronco owner that is serious about off-roading. These rock sliders are about as heavy duty and high quality as you will find for the Bronco.  Made from a combination of 3/16 inch wall square main tube and 1/8 inch wal square kickers with 3/16 inch frame plates. All corners are welded gussets to give extreme strength. Installation is done by the use of frame brackets that use existing holes in the frame for the rear gusseted towers. The front tower does require a bracket to be weld on the driver and passenger side. Once bolted on the sliders are removable.

  • Heavy Duty Rock Sliders
  • 3/16 inch wall main tube, 1/8 inch wall kickers
  • Frame mounted for superior strength
  • Only 2 welded parts, then bolt-on and removeable
  • 17-4 Stainless Bolt-head protectors
Read More

Carli Suspension CS-BRRS-21 Rock Sliders for the Ford Bronco are a great addition for any Bronco owner that is serious about off-roading. These rock sliders are about as heavy duty and high quality as you will find for the Bronco.  Made from a combination of 3/16 inch wall square main tube and 1/8 inch wal square kickers with 3/16 inch frame plates. All corners are welded gussets to give extreme strength. Installation is done by the use of frame brackets that use existing holes in the frame for the rear gusseted towers. The front tower does require a bracket to be weld on the driver and passenger side. Once bolted on the sliders are removable.

  • Heavy Duty Rock Sliders
  • 3/16 inch wall main tube, 1/8 inch wall kickers
  • Frame mounted for superior strength
  • Only 2 welded parts, then bolt-on and removeable
  • 17-4 Stainless Bolt-head protectors
$2800
Vehicle Fitment
MakeFord
ModelBronco
Year Fitment2024, 2023, 2022, 2021
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-BR25SPKG-21
Item Numbercar_cs-br25spkg-21
Product LineLift Kits
Lift Height3 inch
