3" 2007-2021 Toyota Tundra Fox 2.5 Performance Elite CoilOver Premium Lift Kit by BDS Suspension

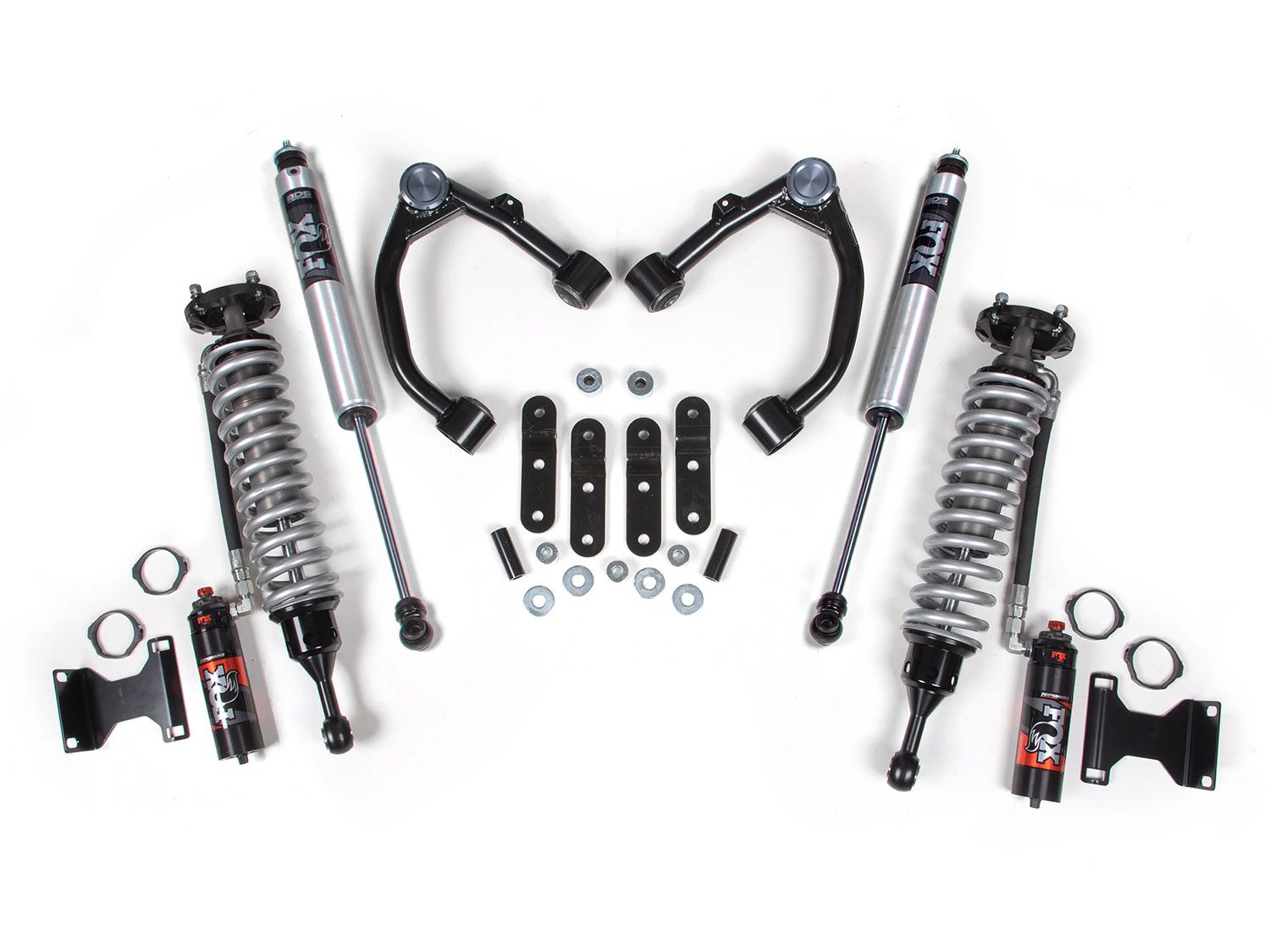

This BDS Suspension BDS824FPE / BDS824FPS premium system for the Toyota Tundra includes a pair of specially tuned Fox 2.5 Performance Elite remote reservoir coilovers. To provide optimal performance, these coilovers are preset for the correct lift height right out of the box. They are a direct bolt-in replacement for the factory strut assemblies and include bolt-in reservoir mounting brackets. These coilovers feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs, black anodized machined 6061-T6 billet aluminum mounts.

Also supplied as part of this complete 3" lift system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axle angles at a minimum.

Choose the rear shocks that are right for you! Fox 2.0 Performance Shocks are a great option, using a 2-inch aluminum body and monotube gas design. Upgrade to the awesome Fox Performance Elite 2.5 shocks with DSC adjustment. Featuring a 2.5 inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

In the rear, BDS supplies a set of heavy-duty shackles. These shackles provide 1" of lift to level the stance and include grade 8 installation hardware.

Lift Kit Features:

• Lifts Front 3 inches / Rear 1 inch
• Premium Suspension System
• Fox 2.5 Performance Elite Remote Reservoir Coil-Overs for excellent ride quality on and off-road
• Allows use of 33 x 12.5 tires (17x9 w/stock or 5 inch backspacing)
• Performance tubular upper control arms with factory-style rubber bushings
• Indexed ball joints in arms provide excellent suspension travel
• 1-inch Rear Shackles
• Lifetime Warranty with Factory Plus Protection (5 year / 60,000 mile drivetrain)
• Differential Drop Kit
• Estimated Install Time of 4 to 6 hours

FOX 2.5 Remote Reservoir Coilover Features:

• Smooth-bore, clear coated, zinc-plated alloy body
• DSC Adjusters in coilover reservoirs (and Performance Elite Shocks) allow you to adjust the ride from soft to firm with the turn of a dial
• Black anodized 6061-T6 billet Aluminum mounting components and remote reservoir
• 7/8" hard chrome plated heat treated alloy steel shaft
• High flow piston design with specially formulated race oil
• External reservoir separates shock oil from high-pressure nitrogen
• Easy bolt-on installation, coil spring preload set for proper ride height out

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
