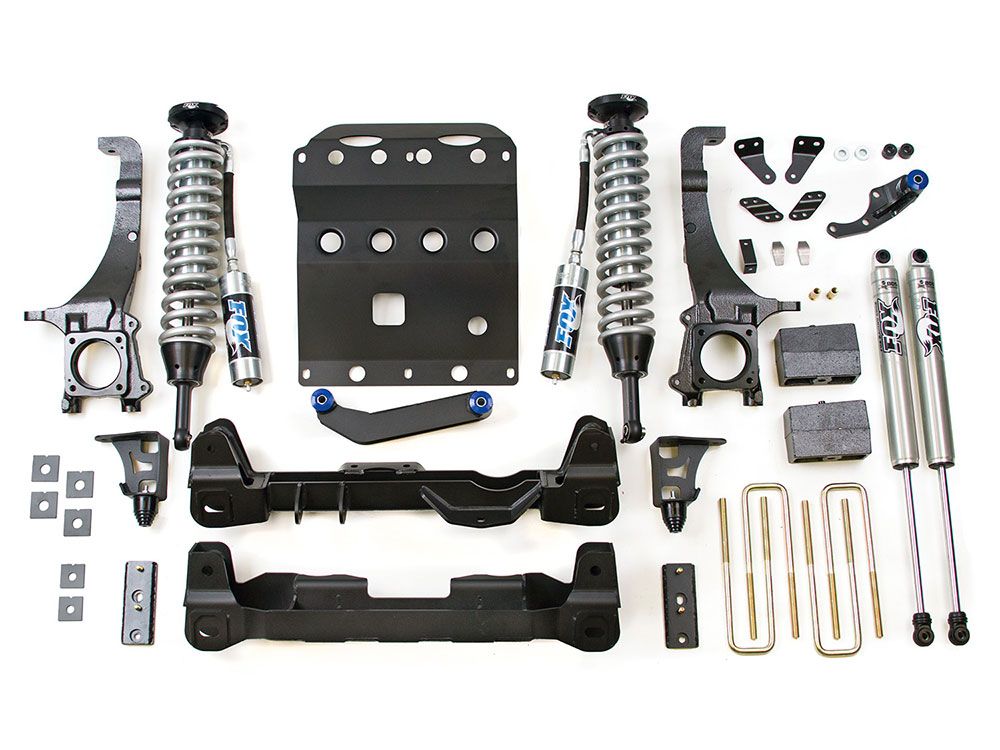

This premium quality BDS Suspension BDS815F 6 inch lift kit for the 2005 thru 2015 Toyota Tacoma is collaborative effort between BDS Suspension and Fox Racing. Featuring Fox 2.5" coil-over remote reservoir shocks this system offers a simple bolt on package and has been rigorously tested to maximize travel and performance on and off the pavement.

This system utilizes BDS proven design standards including one-piece front & rear crossmembers coupled with precision machined ductile cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The knuckles are also considerably more robust in both the mass and strength categories over the rather light-duty stock components.

The crossmembers are built from 1/4" steel plate and have integrated mounts that locate the new differential mounts to properly drop and reposition the front differential for optimal CV and front driveshaft angles. The whole package is protected by a new belly pan skid plate that runs from the front to rear crossmember and integrates cleanly with the factory front skid/splash guard.

The rear of the kit comes all the components necessary to level the truck, including 4" blocks, u-bolts and brake line relocation brackets. BDS by Fox 2.0 series rear shocks come standard in this system.

Nothing complements this BDS Suspension better than the race proven design of Fox 2.5" remote reservoir coil-over front shocks. These have been specifically engineered to fit the BDS Suspension system and feature an external reservoir for increased oil cooling capacity and nitrogen volume for a more consistent and comfortable ride. These have also been pre-set by BDS to the correct ride height for an easy installation, but can be fined tuned to your liking.

This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

Top Features

• Fox 2.5 Remote Reservoir Coil-Overs (optional DSC Adjustable)
• Heavy Duty Cast Iron Steering Knuckles
• One-Piece Front & Rear Crossmembers
• Belly Pan Skip Plate Included
• 6 inch Front Lift / 4 inch Rear Lift
• Rear Fox 2.0 Performance Shocks
• Rear Blocks and Extended U-bolts
• Estimated Install Time: 6 to 8 hours
• Difficulty Leve (easy 1-5- complicated): 3
• No Fine Print Lifetime Warranty (you break it, we replace it)
• Best Quality and Engineering in the Industry
• Proudly Made in the USA

Tire & Wheel Combinations

• 35 x 12.50 w/18 x 9 and 4.5" Max. backspacing
• w/ 20 x 9 and 4.5" max. back spacing
• Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

• Some 2014-2015 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 2005-2013 model
• System will work on 2WD PreRunner models
• Strut compressor required for installation
• Requires frame bracket modification
• Stock wheels cannot be reinstalled
• Can not use 17" wheels
• Minor welding required
