8" 2009-2012 Dodge Ram 3500 (w/diesel engine) 4WD Long Arm Lift Kit by BDS Suspension

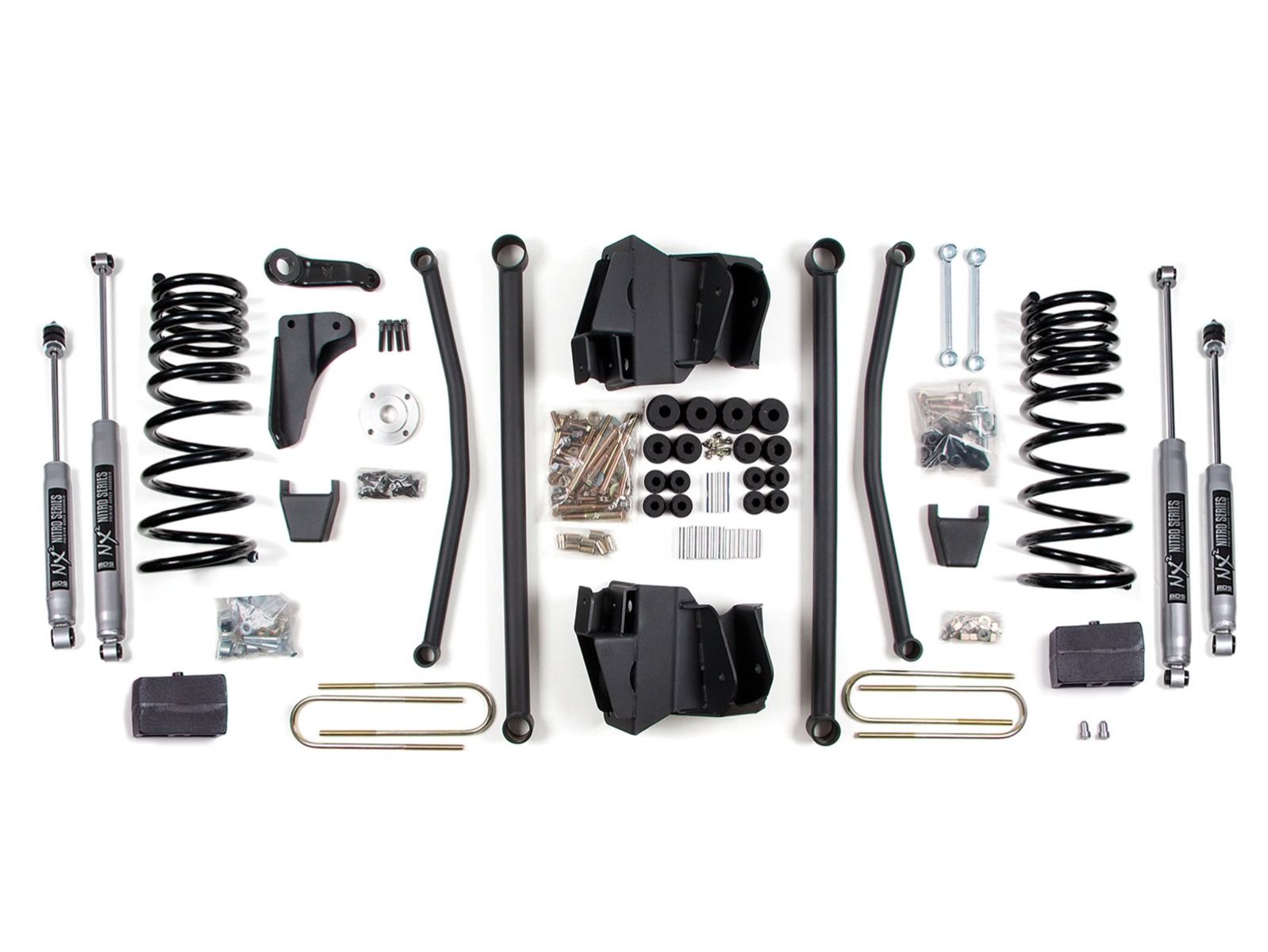

This BDS Suspension BDS632H 8 inch lift kit for the Dodge Ram 3500 features solid upper long arms and tubular lower long control arms for great performance and handling. The long control arm reduce caster change through wheel travel creating a more controlled feeling in the steering wheel both on and off road. All four control arms are greasable for long term performance.

This 4-Link long arm lift kit retains the factory triangulation of the arms as well which adds to the stability of the suspension system. A dropped forged pitman arm is included to maintain the factory steering angles. A track bar relocation bracket is included to properly center the axle under the vehicle. Extended bump stops and sway bar links are included to maintain the OE characteristics.

The rear of the Dodge Ram is lifted via 5 inch block kit or Pro-Glide rear leaf springs.

Top Features

• Long Arm Control Arms for better control and handling
• 8 inch Pro-Ride Coil Springs for a great ride
• Forged drop pitman arm
• Front track bar bracket to keep axle centered
• Extended bump stops
• Rear lift blocks or Pro-Glide rear leaf springs
• Made in the USA
• Premium quality components

Tire and Wheel Combinations

• 38 inch x 14.0 inch w/17 x 9 and 4.5 inch back spacing
• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Installation Instructions
