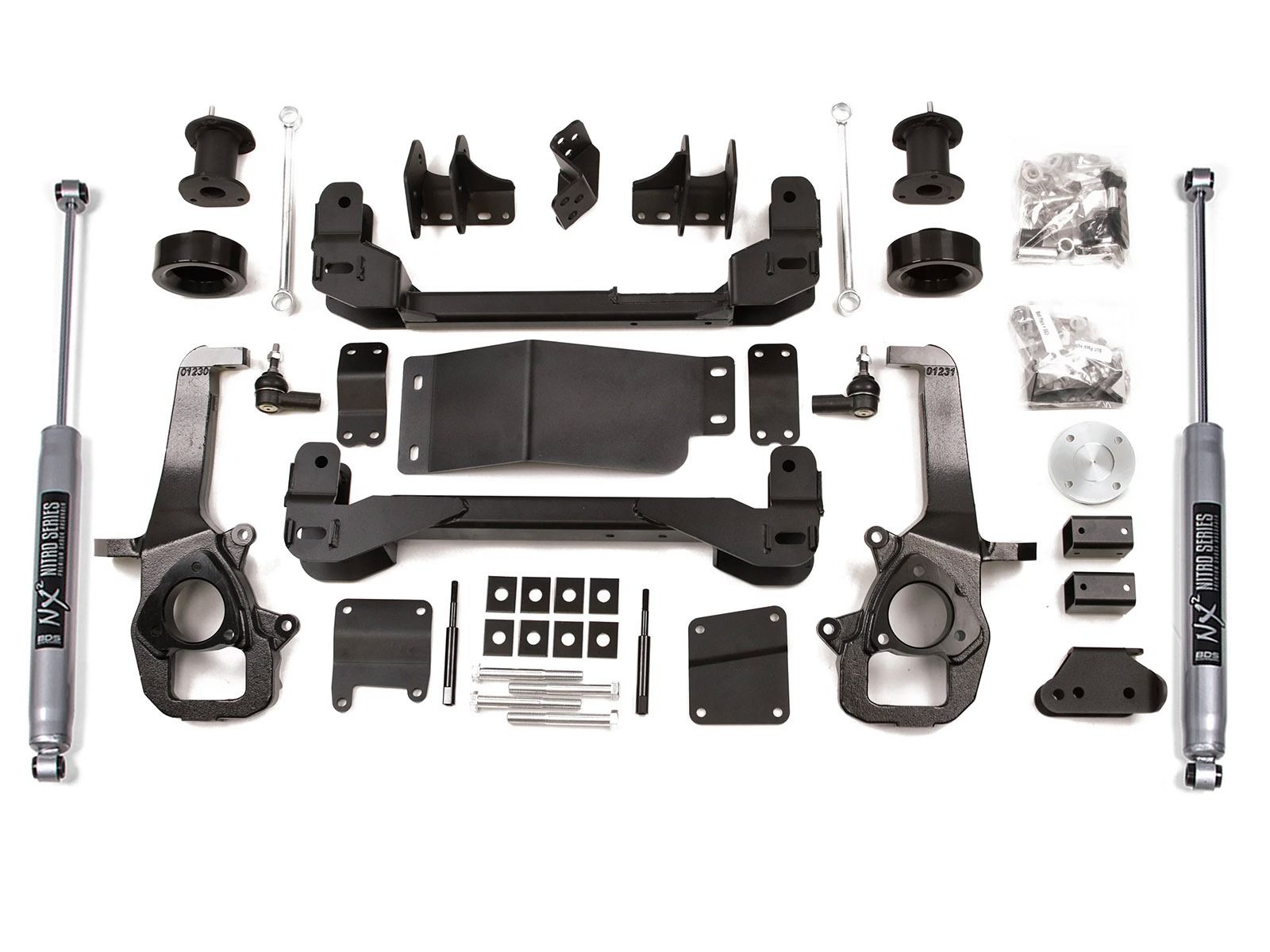

The BDS Suspension BDS623H 4 inch lift kit for the Dodge Ram 1500 will allow for fitment of up to 35 inch diameter tires for a great off-road look. This kit is based around two one-piece 1/4" laser cut high clearance crossmembers as well as replacement steering knuckles. By utilizing high clearance components, this kit increases ground clearance for off-road performance. The replacement steering knuckles reduce installation time as well as maintain proper steering and ball joint angles. A differential skid plate is also incuded, providng maximum protection off-road. Bump stop drops, anti-sway bar links, 3 point diff drop system, strut relocation brackets and front stainless steel brake lines are all included, creating a premium kit.

The rear end of the vehicle is lifted via BDS 2" rear coil spacers or 3" Pro-Ride coil springs, which are capable of being smashed totally flat just to come back around to normal ride height. A rear track bar bracket, upper link relocation bracket and sway bar links are included, providing the desired ride height.

Features and Benefits:

• Allows use 35 inch diameter tires
• Heavy duty ductile iron steering knuckles
• High clearance 1/4 inch steel crossmembers
• Differential skid plate
• Front stainless steel brake hoses
• Only Heavy Duty components are used
• Estimated Install Time: 10 hours
• Difficulty Level (easy 1-5 complicated): 4
• No Fine Print Lifetime Warranty (you break it, we replace it)
• Best Quality and Engineering in the Industry
• Proudly Made in the USA
• Fits a 35" x 12.50" tire w/17 x 9 and 4.5" back spacing
• Fits a 35" x 12.50" tire w/18 / 20 x 9 and 5" back spacing
• *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
