6" 2011-2016 Ford F250 / F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Lift Kit by BDS Suspension
6" 2011-2016 Ford F250 / F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
888-452-2548

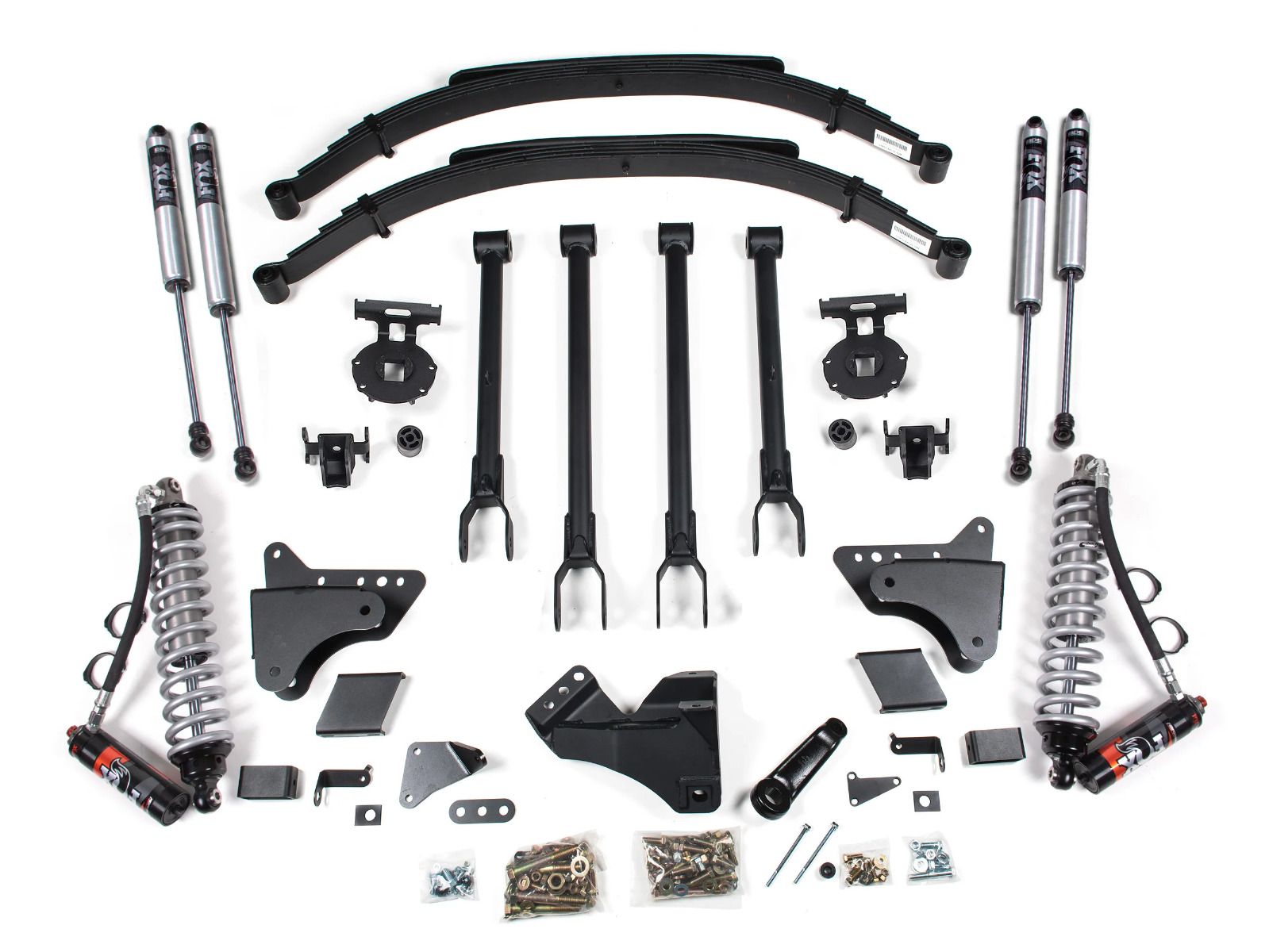

This BDS Suspension BDS596FPE 6 inch 4-link lift kit for the Ford F250 / F350 4wd diesel trucks is truly a premium suspension upgrade that will allow fitment of up to 37 inch diameter tires. Featuring Fox 2.5 Performance Elite Remote Reservoir Coilovers that give amazing on or off-road performance and dampening while replacing the factory coil springs. This conversion is made possible by the massive coil-over mounting brackets that completely replace the front factory coil buckets. The new brackets bolt on using factory frame holes, providing a heavy-duty mounting location for the new Fox coil-overs and reservoirs. Also featured is the BDS 4-link conversion suspension system that replaces the weaker factory radius arms. The full replacement 4-link frame brackets bolt into factory holes and create a solid mounting location for the massive tubular 4-link arms. These arms allow the front suspension geometry to be optimized for control and handling through all types of terrain. The front portion of the lift system also includes a drop pitman arm and front track bar relocation bracket to correct steering and track bar angles as well as to center the axle under the vehicle. Front bump stop extensions, sway bar drops, and brake line relocation round out the front system. In the rear, full replacement BDS Glide-Ride leaf springs provide the lift needed to level the rear to the front and compliment the front suspension whether loaded or not. Features and Benefits:
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
Product HighlightsFox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance. Fox Coil-Over DSC AdjustmentThe included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions. Ford 4-Link Long Arm UpgradeThis awesome upgrade replaces Ford factory radius arms with a 4-link long arm control arm system. This gives superior handling and ride control by giving consistant caster angle through full wheel travel. Controlling the axle movement with independent upper and lower links. |
Important Notes |
Make | Ford |
---|---|
Model | F250, F350 |
Year Fitment | 2016, 2015, 2014, 2013, 2012, 2011 |
2WD/4WD | 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS596FPE / BDS597FPE |
Item Number | bds_bds596fpe |
Product Line | Lift Kits |
Lift Height | 6 inch |
