3.5" 1987-1995 Jeep Wrangler YJ 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS409H
Special Price $1,035.93 Regular Price $1,090.45


free shipping truck PREMIUM FREIGHT ITEM
$99.95 shipping charges apply, why we ship this via truck

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

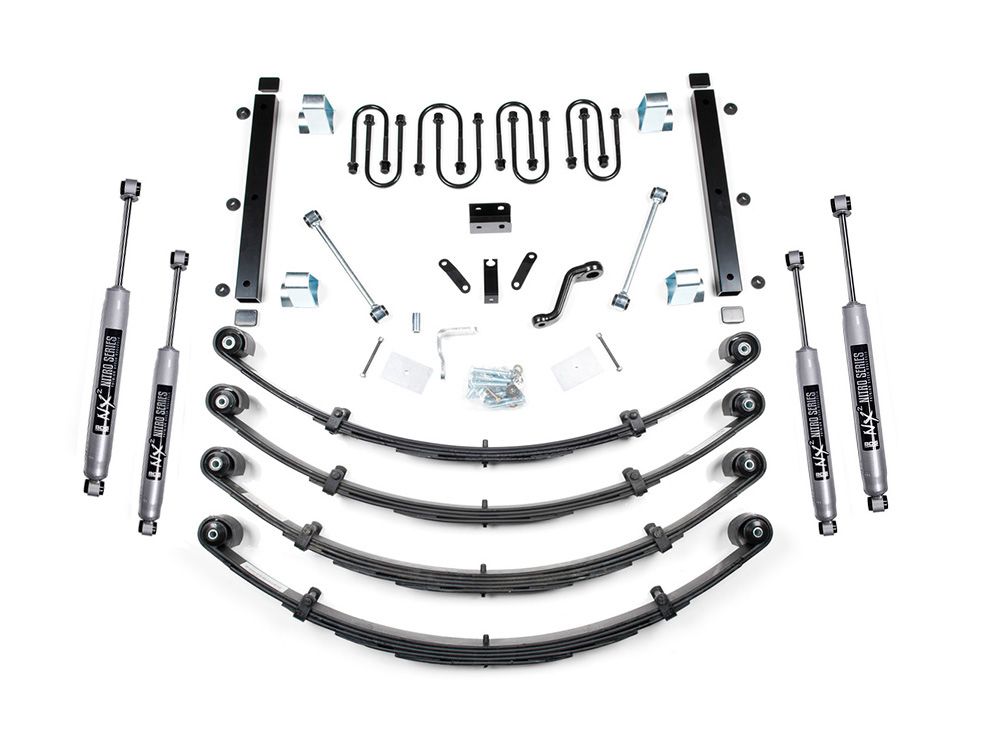

The BDS Suspension BDS409H 3.5 inch premium suspension lift kit for the Jeep Wrangler YJ will allow for fitment of up to 33 inch diameter tires for a great off-road look. This kit comes with BDS 3.5" front and rear Glide-Ride leaf springs. These springs feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. If you are actually capable of breaking the main leaf, the military wrap will allow you to limp home off the trail. These springs are made to perform off-road as well as get you to and from work.

Also included are urethane spring eye bushings, u-bolts, front and rear track bar relocation brackets to center the axle, transfer case drop kit to ease the drive line angles, brake line relocation brackets, bump stop extensions, a power steering pitman arm for corect steering angles, and extended sway bar link.

Features and Benefits:

  • Allows use of up to 33 inch diameter tires
  • Glide-Ride front and rear leaf springs for great on and off-road performance
  • Springs feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps
  • Full Military wrap springs
  • Drop pitman arm
  • Extended sway bar endlinks
  • BDS NX2 Series Shocks
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Fits a 33" x 12.50" tire w/15 x 8 and 3.5" back spacing
  • Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. May require driveshaft lengthening for 13" (u-joint to u-joint) driveshaft.
2. May require larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
3. Extended shackles recommended to clear military wrap.
4. Models with accessories like hardtop, rear tire carrier, roof rack etc., should use #004351 springs on front and rear.
5. When combining lifted shackles with a 3.5" suspension system, a tail shaft eliminator kit and a "CV" style rear driveshaft may be required to eliminate driveline vibration.
6. Pitman arms will NOT fit Yj models equiped with manual steering.
Vehicle Fitment
MakeJeep
ModelWrangler YJ
Year Fitment1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS409H
Item Numberbds_bds409h
MPN(UPC)840416416275
Product LineLift Kits
Lift Height3.5 inch
