6" 2005-2007 Ford F250/F350 4WD (w/Diesel engine) Fox Performance Elite Coilover Radius Arm Lift Kit by BDS Suspension
![main product photo](https://www.jackit.com/media/catalog/product/cache/4ddbad3e9bf41c45c34d6658d3b56a44/b/d/bds-1947fpe-main.jpg)
6" 2005-2007 Ford F250/F350 4WD (w/Diesel engine) Fox Performance Elite Coilover Radius Arm Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
![expert Expert Image](https://www.jackit.com/media/wysiwyg/jackit-customer-service-head-shot.png)
Got Questions? We can help!
888-452-2548
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Free-Shipping.png)
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Easy-Return.png)
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Install-Support.png)
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Fitment-Guarantee.png)
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Trusted-by-1000s-v2.png)
![icon Top Rated service](https://www.jackit.com/media/wysiwyg/jackit/Secure-Shopping.png)

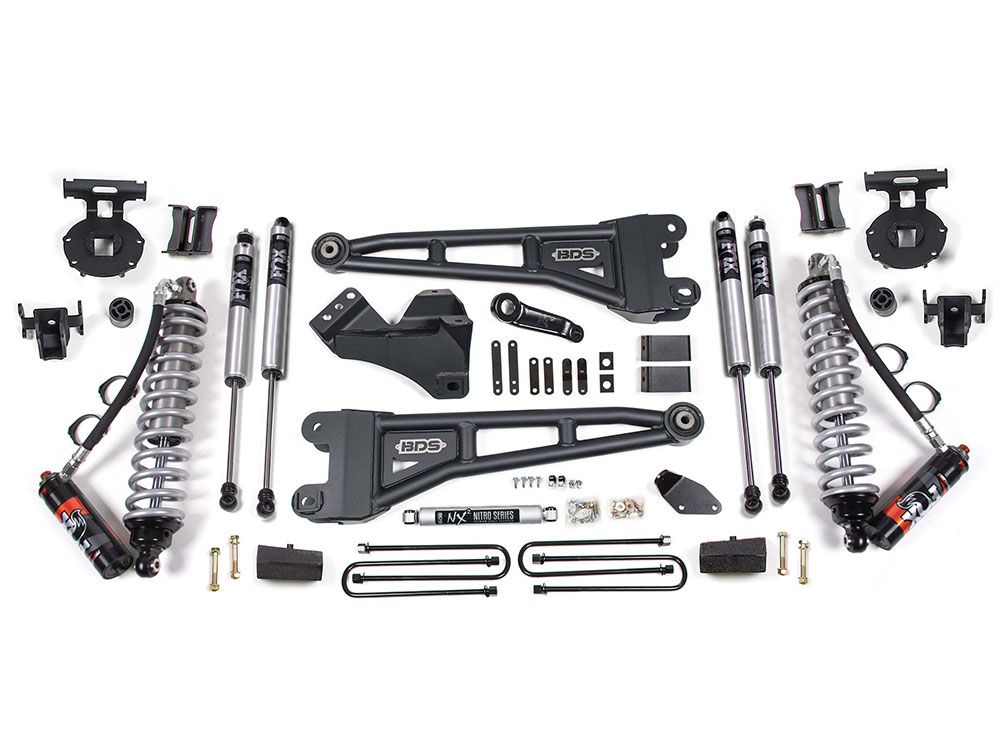

The BDS Suspension BDS1943FPE 6 inch lift kit is a high-end premium lift for your Ford F250 / F350 4wd truck to allow for use of up to 37 inch diameter tires. Built around Fox 2.5 Performance Elite DSC remote reservoir coil-overs and heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. These replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. The included Fox 2.5 Performance Elite remote reservoir coil-overs with DSC (dual speed compression) adjustability, replace the factory coil springs. All required brackets and hardware are included for the suspension conversion. These Fox coil-overs give unmatched suspension performance for on and off-road usage and are equipped with DSC (dual speed compression) adjustability to allow you to fine tune your ride with the turn of a dial. A forged drop pit man arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. In the rear the factory blocks are replaced by a pair of lift blocks along with e-coated extended u-bolts. You can also upgrade to Glide-ride leaf springs with intergrated overload leafs to lift the rear. Features and Benefits
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
Product Highlights![]() Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance. ![]() Heavy Duty Radius ArmsIncluded are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great! ![]() Fox Coil-Over DSC AdjustmentThe included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions. |
Important Notes1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering. 2. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section. 3. Do not install the rear block kit on vehicles equipped with a factory 3-7/8" rear block. Only use rear spring option on these vehicles |
Make | Ford |
---|---|
Model | F250, F350 |
Year Fitment | 2007, 2006, 2005 |
2WD/4WD | 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS1943FPE |
Item Number | bds_bds1943fpe |
Product Line | Lift Kits |
Lift Height | 6 inch |
