5.5" 2019-2024 Dodge Ram 3500 4WD (Gas Models) Radius Arm Lift Kit by BDS Suspension

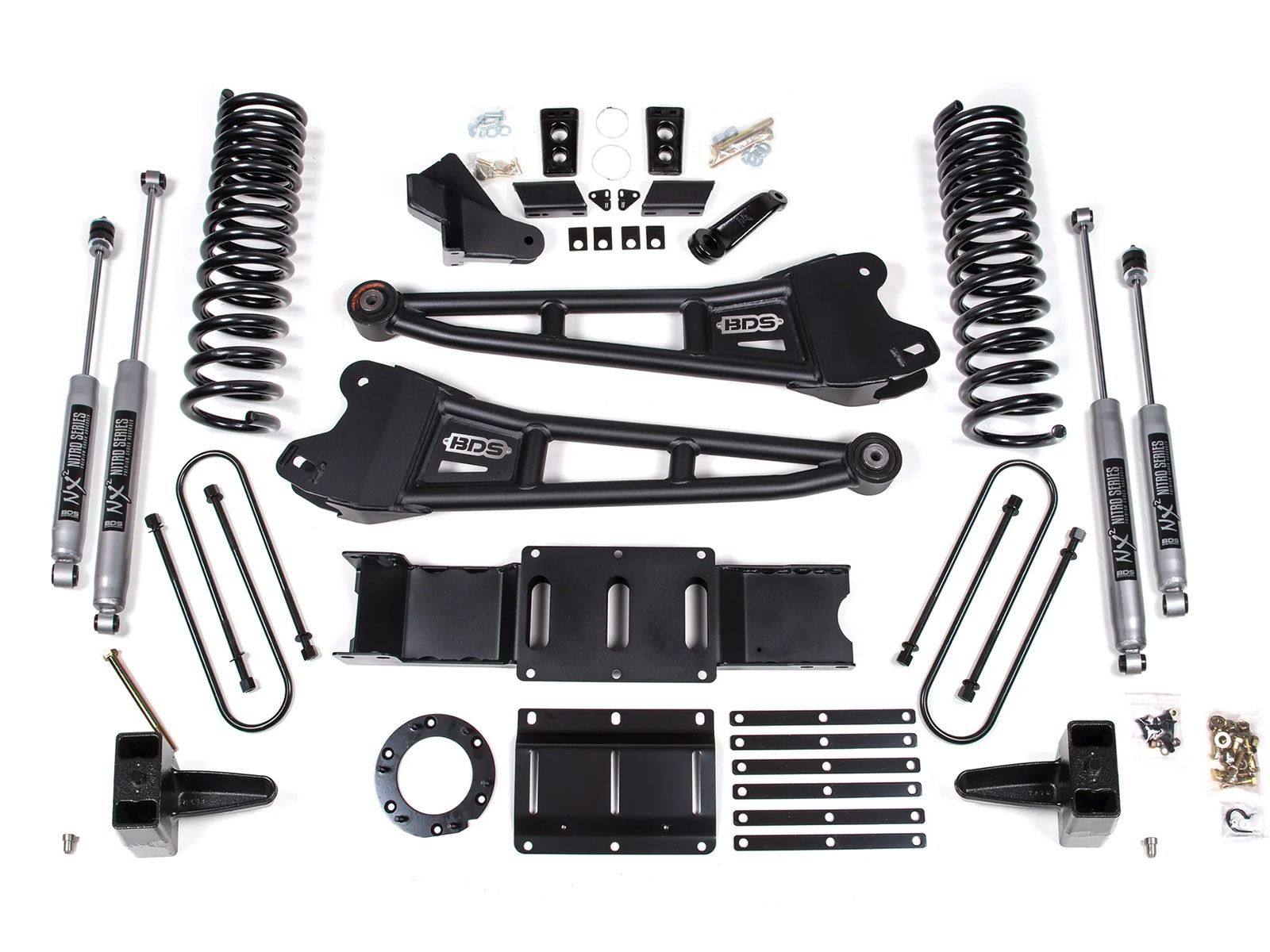

This BDS Suspension BDS1686H 5.5-inch lift kit for the Ram 3500 is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory-style rubber bushing mount at the frame to keep the NVH levels in check. The 3-1/4" diameter bushings are huge and have a long, maintenance-free service life. The new radius arms mount right into the factory locations so installation is simple and clean. Factory alignment adjustability is maintained using the OE eccentric adjusters. The arm geometry is set to keep the axle angle in the factory specs while compensating for the lift. A copper-anodized aluminum BDS name plate is mounted on each arm.

5.5-inch lift front coil springs improve the ride and handling for both on and off road conditions. A heavy-duty turnbuckle style adjustable track bar is included to center the axle. BDS greaseable front sway bar links reset the sway bar to the optimum angle and round out the main front components. Add in the front brake line relocation brackets and a choice of BDS NX2 or FOX 2.0 Performance Series shocks and this system is set to handle any terrain. The rear system is a simple 5" block and U-bolt setup to level out the back with the newly lifted front.

To improve ride quality and performance, you can choose BDS NX2 gas shocks, Fox 2.0 Performance Series IFP gas shocks or or 2.5 Performance Elite remote reservoir adjustable shocks. Performance Elite shocks feature an aluminum 2.5 inch body and DSC adjusters to fine tune from a soft to firm ride.

Features and Benefits:

• Lifts vehicle 5.5 inches
• Allows use of up to 37 inch diameter tires
• Heavy Duty Tubular Replacement Radius Arms
• Progressive Rate Front Coil Springs
• Front Turnbuckle Adjustable Track Bar
• Average install time: 5 hours
• Choose from BDS NX2, Fox 2.0 Performance or Fox 2.5 Performance Elite Shocks
• Made in the USA using only Premium Components
• No Fine Print Lifetime Warranty
• Fits a 37" x 12.50 w/20" x 9" tires and 4.5 - 5.625" backspacing
  • *Trimming may be required*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
