5.5" 2013-2018 Dodge Ram 3500 Gas Engine (w/Rear Air-Ride) 4WD 4-Link Lift Kit by BDS Suspension

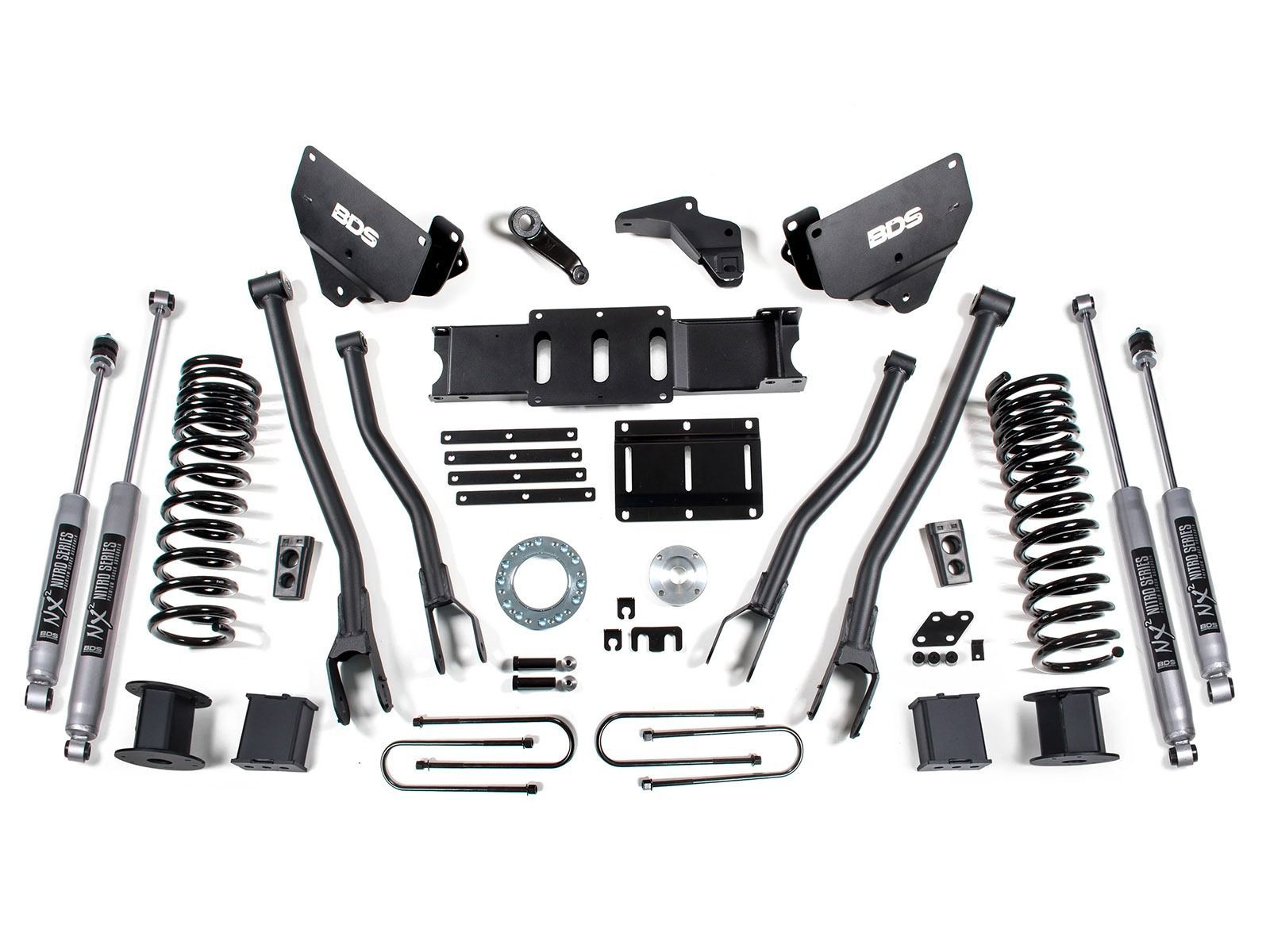

The BDS Suspension BDS1652H 5.5 inch premium 4 Link suspension lift kit for the 2013 thru 2018 Dodge Ram 3500 Diesel models will allow for fitment of up to 37 inch diameter tires for a great off-road look. These lift systems are designed to convert the factory radius arm over to a stronger 4-link design offering improved stability, handling and articulation. The kit is designed with 1/4" fabricated 4-link brackets that key into the factory radius arm pockets for added strength. The 4-link design improves handling and drivability by limiting castor change to less than 1-degree throughout wheel travel. These kits also include 5.5" gasengine specific progressive rate front ProRide coil springs, a heavy duty front track bar bracket, forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, high clearance transmission crossmember and transfer case indexing ring, rear block and U-bolt kit along with rear air bag lower spacers and sensor brackets. All kits are finished off with your choice of BDS NX2 or FOX 2.0 gas shocks at all 4 corners. These kits allow for up to 37" tires to be installed.

Features and Benefits:

• 4-Link Design improves handling and drivability
• Allows for use of up to 37 inch tires
• Designed for models with factory air ride suspension
• ProRide Front Coil Springs for improved performance
• Choose between NX2 Nitro or Fox 2.0 Performance Shocks
• Estimated Install Time: 6-7 hours
• Difficulty Leve (easy 1-5 complicated): 3
• No Fine Print Lifetime Warranty
• Best Quality and Engineering in the Industry
• Proudly Made in the USA
• Fits a 37" x 13.50" w/17 x 9 / 18x 9 / 20 x 9tire and 5.625" back spacing
• Fits a 37" x 12.50" w/17 x 9 /18 x 9 / 20 x 9 tire and 4.5" back spacing
• Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
