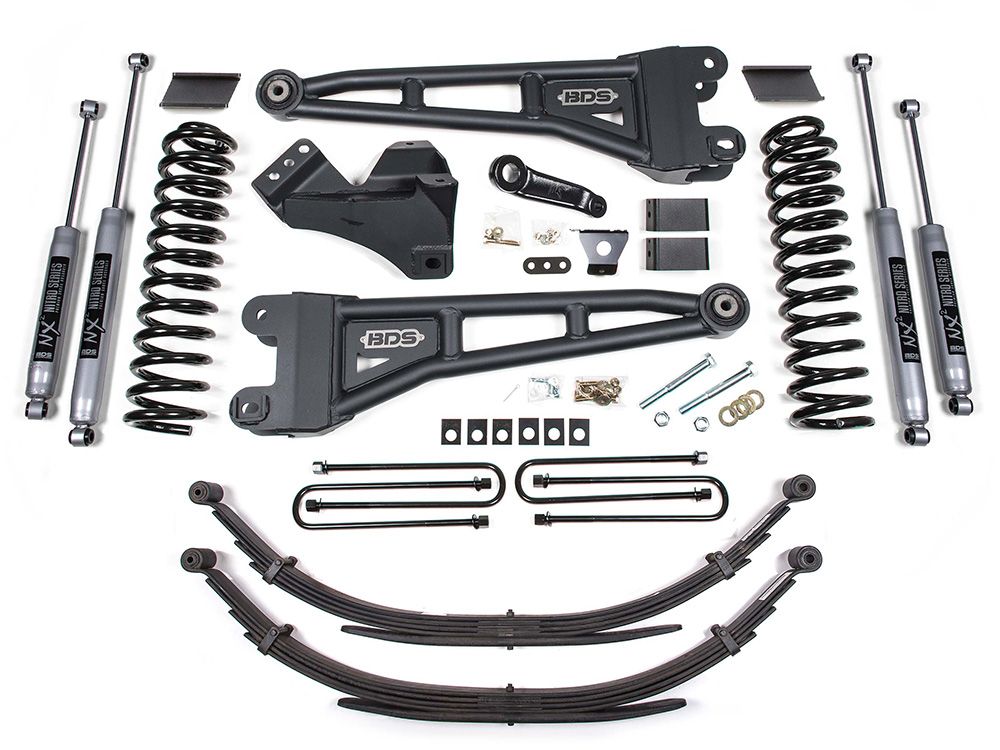

6" 2011-2016 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

The BDS Suspension BDS1592H is a great method to lift your Ford F250 / F350 to allow for the use of tires up to 37 inches in diameter. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. Featuring a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm and a supplied integrated drag link flip correct steering angles. The front axle remains centered using a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions and brake line relocation brackets.

Glide-ride leaf springs with intergrated overload leafs lift the rear, also included are e-coated extended u-bolts and a rear brake line relocation braket.

All possible SKUs based on options selected: BDS1592H BDS1592FS BDS1593H BDS1593FS BDS1594H BDS1594FS BDS1595H BDS1595FS

Features and Benefits:

• 6-inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
• Allows use of up to 37-inch tires
• Average Install Time: 6 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• 37" x 12.50" w/17 x 9 and 4.5" backspacing
• 37" x 12.50" w/18 x 9 and 4.5" backspacing
• 37" x 12.50" w/20 x 9 and 4.5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
