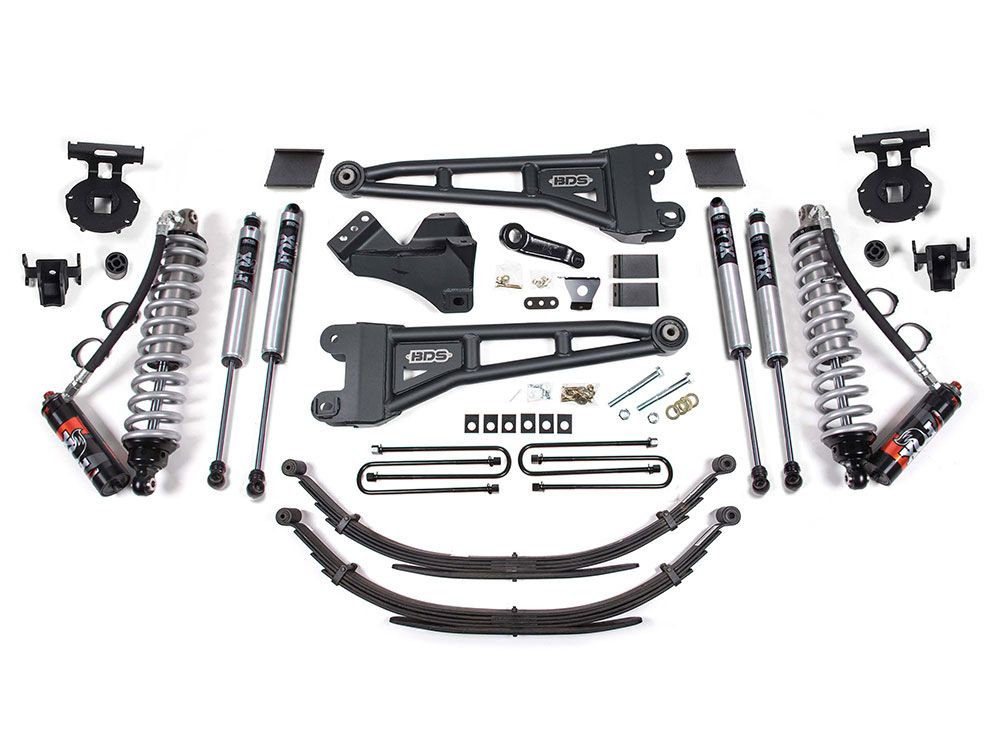

The BDS Suspension BDS1592FPE 6 inch lift kit is a high-end premium lift for your Ford F250 / F350 4wd truck to allow for use of up to 37 inch diameter tires. Built around Fox 2.5 Performance Elite remote reservoir coil-overs and heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. These replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. The included Fox 2.5 Performance Elite remote reservoir coil-overs with DSC (dual speed compression) adjustability, replace the factory coil springs. All required brackets and hardware are included for the suspension conversion. These Fox coil-overs give unmatched suspension performance for on and off-road usage and are equipped with DSC (dual speed compression) adjustability to allow you to fine tune your ride with the turn of a dial. A forged drop pit man arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. Choose between are rear lift of blocks and dual rear add-a-leafs or upgrade to Glide-ride leaf springs with intergrated overloads, also included are e-coated extended u-bolts and a rear brake line relocation braket. Features and Benefits
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
Product Highlights Fox 2.0 Performance SeriesFox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.  Heavy Duty Radius ArmsIncluded are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!  Fox Coil-Over DSC AdjustmentThe included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions. |
| Important Notes1. Front exhaust modification may be required to clear front drive shaft (gas only). 2. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required. 3. Although extremely rare, front driveline vibration may occur. 4. If equipped with rear sway bar, #123009 required. 5. U-bolts will not work on dually. |
| Make | Ford |
|---|---|
| Model | F250, F350 |
| Year Fitment | 2016, 2015, 2014, 2013, 2012, 2011 |
| 2WD/4WD | 4WD |
| Manufacturer | BDS Suspension |
|---|---|
| Manufacturer Part Number | BDS1592FPE / BDS1593FPE |
| Item Number | bds_bds1592fpe-1593fpe |
| MPN(UPC) | 840416404692 |
| Product Line | Lift Kits |
| Lift Height | 6 inch |
