6" 2017-2019 Ford F250/F350 (w/diesel engine) 4wd Radius Arm Lift Kit by BDS Suspension

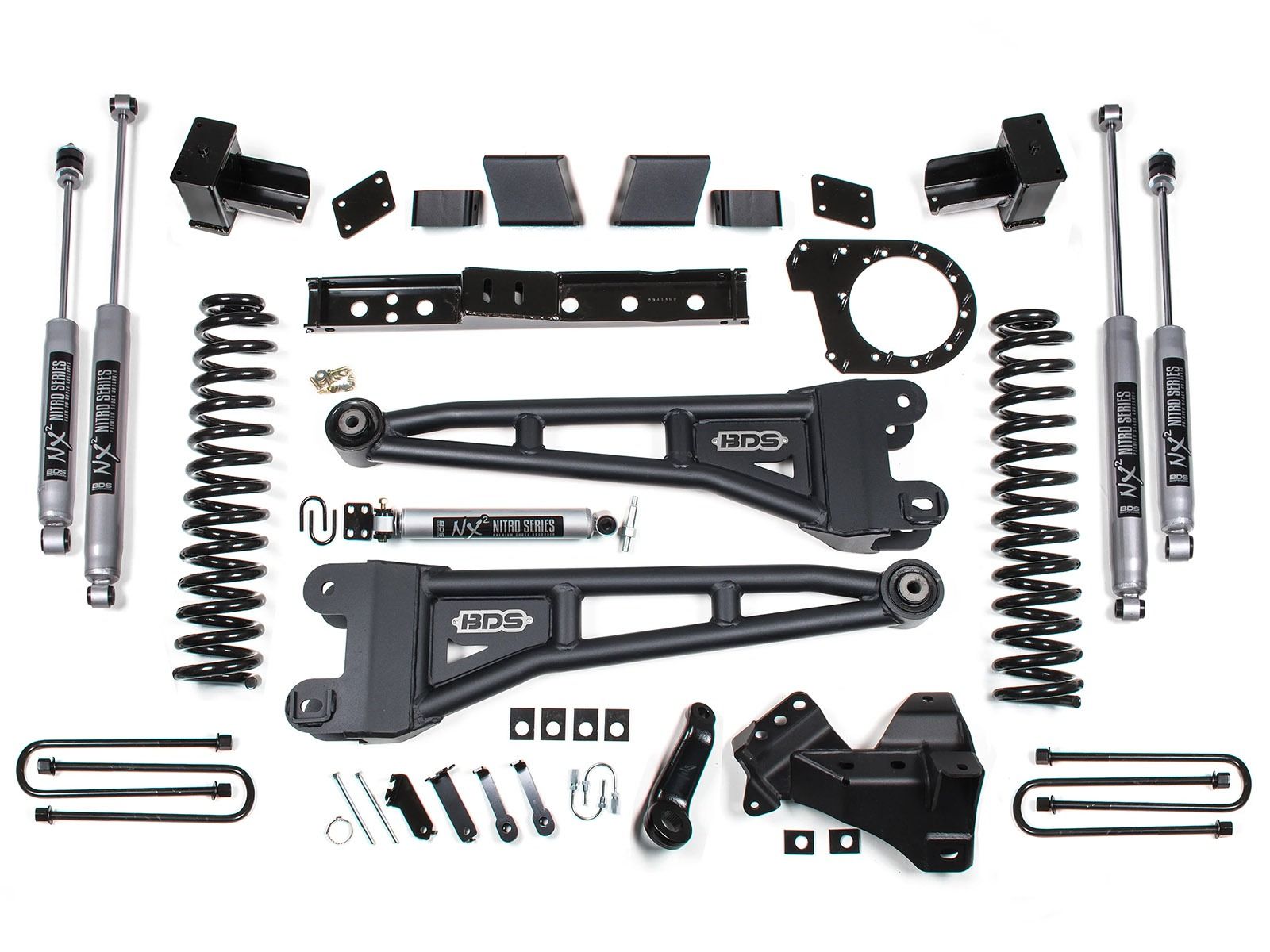

The BDS Suspension BDS1580H / 1580FS 6-inch lift kit is an excellent method to lift your 2017 through 2019 Ford F250 / F350 4wd truck to allow for the use of up to 38-inch diameter tires. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. Featuring a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm corrects steering angles, along with a supplied integrated drag link flip. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by a pair of lift blocks that feature integrated bump-stop wings and e-coated extended U-bolts.

To improve ride quality and performance, you can choose BDS NX2 Niro Gas (2-inch steel body), Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body). Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Features and Benefits:

• 6-inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms correct front end geometry
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose from BDS NX2 Nitro Gas Shocks (2-inch steel body), Fox 2.0 Performance Shocks (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 38-inch tires
• Average Install Time: 6 to 8 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 38" x 13.50" tires w/17 x 9 and 4.5"-5" backspacing
• Fits 38" x 13.50" tires w/18 x 9 and 4.5"-5" backspacing
• Fits 38" x 13.50" tires w/20 x 9 and 4.5"-5" backspacing
• Fits 38" x 13.50" tires w/17 x 10 and 5" backspacing
• Fits 38" x 13.50" tires w/18 x 10 and 5" backspacing
• Fits 38" x 12.50" tires w/20 x 10 and 5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

All Possible SKUs Depending on Options Selected: BDS1580H, BDS1580FS, BDS1581H, BDS1581FS
