4" 2015-2020 Ford F150 4WD Fox Performance Elite Coilover Lift Kit by BDS Suspension

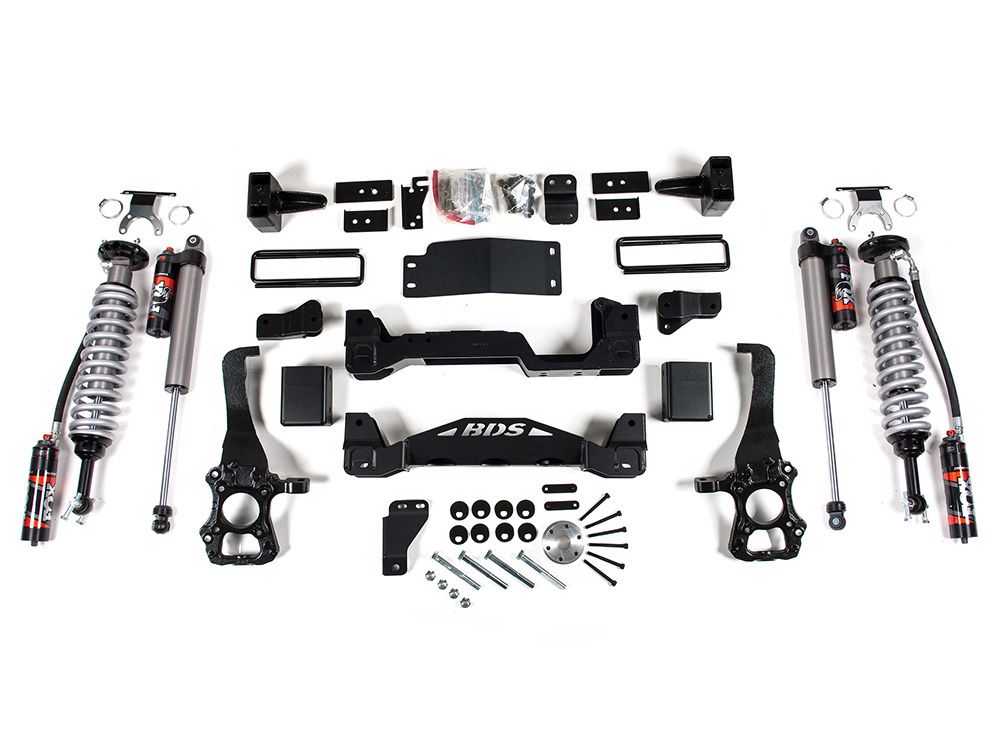

This BDS Suspension BDS1533FPE / BDS1590FPE 4'' suspension lift kit for the Ford F150 4wd with year a range from 2015 to 2020 is a premium lift system that features Fox Performance Elite Series 2.5 Remote Reservoir Coilovers (with DSC adjustable ride control). Once installed, this kit delivers unmatched performance for both on-road and off-road conditions. It will allow for the use of up to 35 inches with proper wheel width and backspacing.

Along with the Fox coilovers, this kit is built around a pair of high clearance one-piece1/4" steel cross members, CNC-machined ductile iron steering knuckles, heavy-duty replacement ball joints, multipoint differential relocation brackets, heavy-duty differential skid plate, sway bar relocation brackets, new alignment cam bolts, and billet aluminum driveshaft spacer.

A lift block kit replaces the factory 1.25'' block to lift the rear to eliminate stacking blocks. Rear brake line extensions and Fox 2.0 Performance or 2.5 Performance Elite shocks complete the rear.

Features and Benefits:

• Allows for use of 35-inch tires
• Premium Quality Components
• Fox Performance Elite 2.5 Remote Reservoir Coil-Overs improve ride quality and off-road performance
• Coilovers include DSC (dual speed compression) adjustable to fine tune your ride
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• NHTSA FMVSS No.126 compliant (compatible with Electronic Stability Control)
• Estimated Install Time: 8-10 Hours
• Fits up to a 35 inch x 12.5 inch tire w/ 18 x 9 and 5-inch backspacing
• Fits up to a 35 inch x 12.5 inch tire w/ 18 x 9 and 5-5.5 inch backspacing
• Fits up to a 35 inch x 12.5 inch tire w/ 20 x 9 and 5-5.5 inch backspacing
• *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
