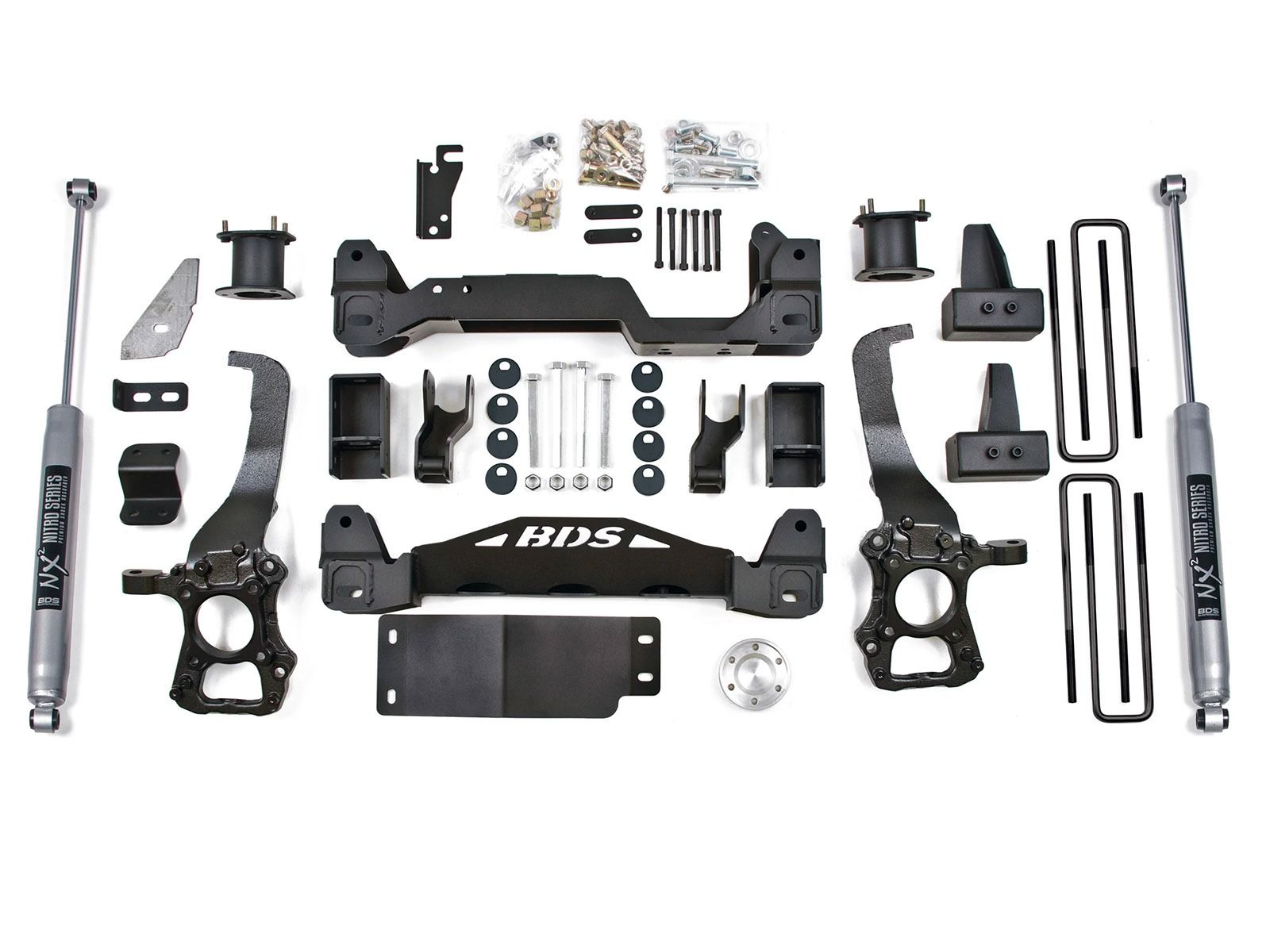

The BDS Suspension BDS1502H / BDS1502FS 4-inch premium lift kit for the Ford F150 4WD truck will allow for the fitment of up to 35-inch diameter tires for a great off-road look. This system includes CNC machined steering knuckles to return your vehicle's steering to factory geometry. One-piece front & rear High Clearance cross members increase rigidity for long-term performance and dramatically increase ground clearance and curb appeal. A 1/4" thick steel differential skid plate is included to ensure off-road protection. This system uses upper front strut spacers to ease installation.

The rear is lifted with a new offset 4" rear block that replaces the factory 1 1/4" block to clear up to 35's. Optional 2-inch blocks are available for a slightly low rear stance.

All possible SKUs based on options selected: BDS1502H, BDS1502FS, BDS1920H, BDS1920FS

Features and Benefits:

• Allows use of 35-inch diameter tires
• Premium Quality Components
• Fox 2.0 Performance Rear Shocks or BDS NX2 Shocks
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Powder Coated for Durability
• Estimated Install Time: 8-10 hours
• No Fine Print Lifetime Warranty
• Fits a 35" x 12.50" tire w/18 x 9 and 5" backspacing
• Fits a 35" x 12.50" tire w/20 x 9 and 4.5-5.5" backspacing
  • *May require trimming*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. They are guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
