4.5" 1984-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension

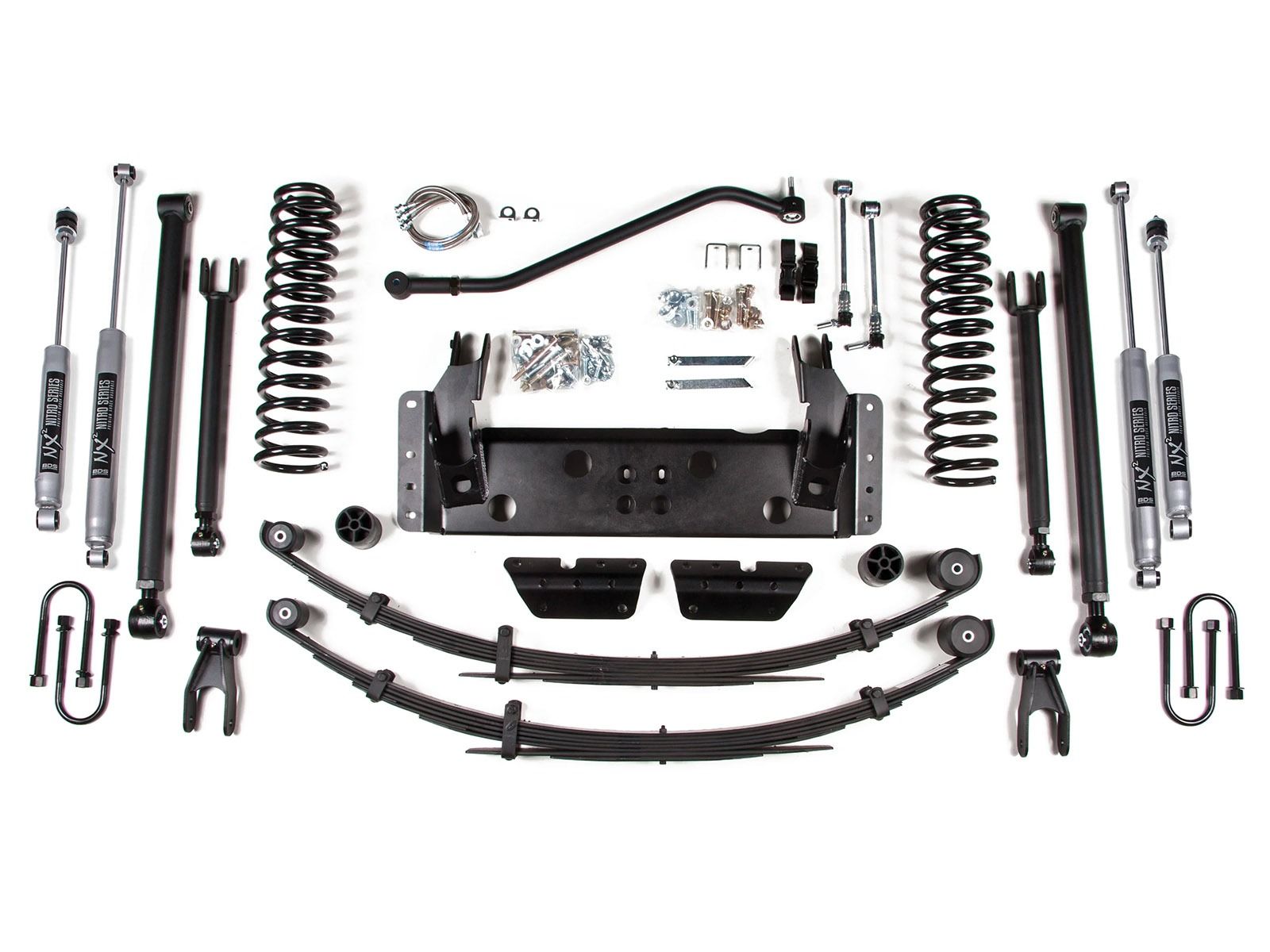

The BDS Suspension BDS1427H / BDS1427FS 4.5-inch premium suspension lift kit for the Jeep Cherokee XJ will allow for the fitment of up to 32-inch diameter tires for a great off-road look. The BDS 4.5" XJ Long Arm system provides the best on and off-road capability you could ask for. By maximizing the length of the upper and lower control arms, BDS has minimized caster change for optimum handling and minimized road forces transmitted ultimately to your seat for the best ride. To give you some idea, the lower arms are nearly bottomed out at just over 32" and the uppers at just over 28". This is about double the length of the factory control arms!

Although this XJ long-arm system makes for a great daily driver, the true abilities of this system won't be appreciated until you hit the rocks, dirt, and mud. The 4-Link design maintains better axle control through wheel travel than any radius arm system because the upper-to-lower link relationship is not fixed. Yet, it is tuned for optimum performance based on link length and operating angles. The control arm geometry is set up with the massive belly pan that incorporates the link mounts and is built to smash rocks. Believe it or not, this system is entirely bolt-on with no welding to the unibody required!

BDSPro-Ride Coil Springs are capable of withstanding full coil bind and a tuned rate lift the front. The rear is lifted with newGlide-Ride Leaf Springs and extended greaseable shackles that let the springs flex.

This system also incorporates BDS Ultimate sway bar disconnects for quick, easy access to ridiculous wheel travel and stainless steel brake lines to handle it. Bump stop extensions are included to limit compression and keep the tires out of the fenders on the trail. A front adjustable track bar with a flex joint fits into the existing frame mount, so drilling of the taper is not required and will allow you to center the front axle accurately.

All possible SKUs depending on options selected: BDS1427H BDS1427FS BDS1428H BDS1428FS

Features and Benefits:

• Long Arm Control Arms improve off-road performance
• Front Adjustable Track Bar keeps axle centered
• Glide-Ride Rear Leaf Springs replace worn factory springs
• BDS NX2 Shocks or Fox 2.0 Performance Shocks
• Estimated Install Time: 8hours
• Difficulty Level (easy 1-5 complicated): 4
• No Fine Print Lifetime Warranty (you break it, we replace it)
• Best Quality and Engineering in the Industry
• Proudly Made in the USA
• Up to 32" x 11.50" w/15 x 8 and 3.5" to4" back spacing
• Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
